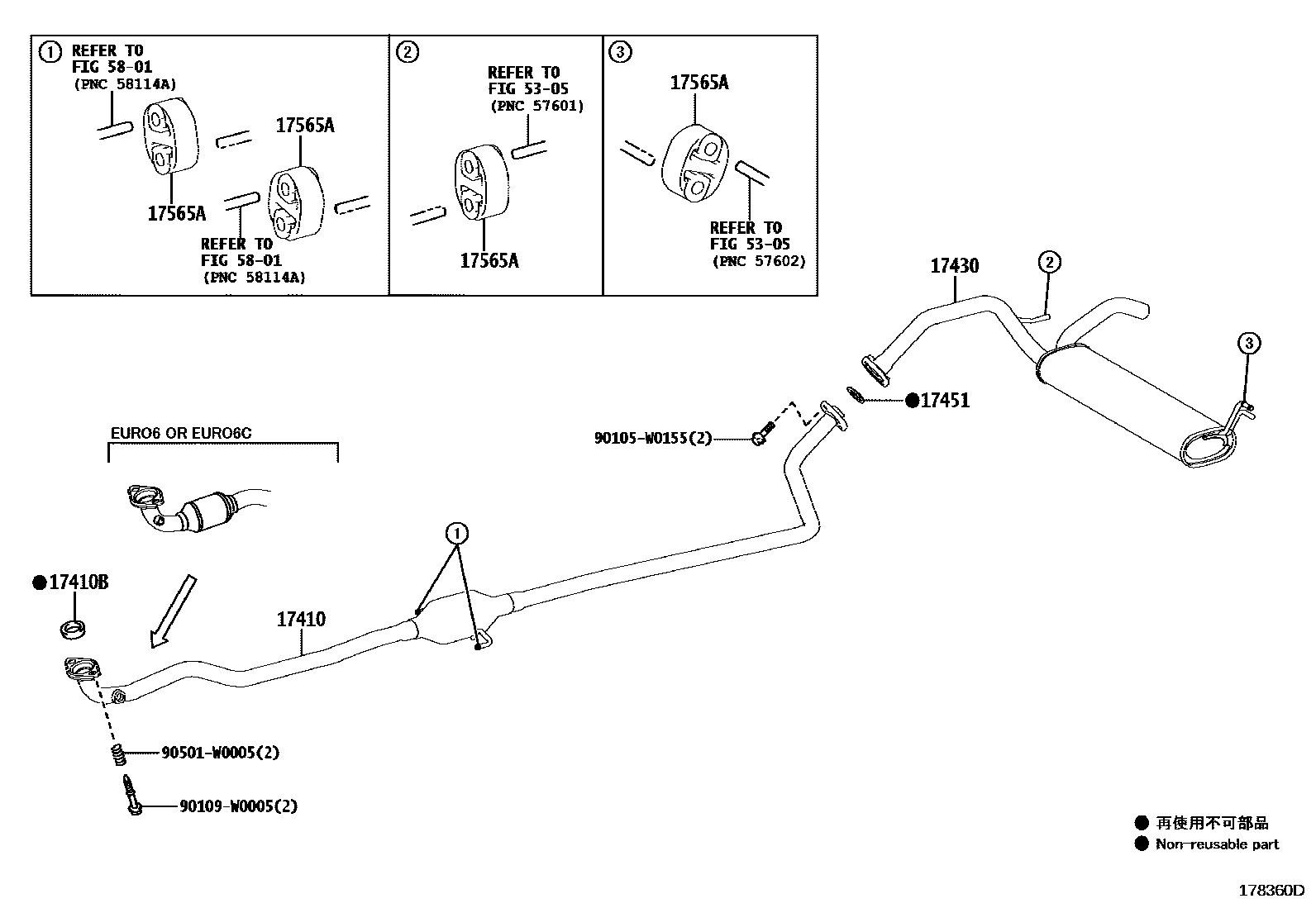

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0Q060i1KRFE..KGB40201405-201505

main17410-0Q080i1KRFE..KGB40201505-201805

*114=TOYOTA/CH8/Y

main17410-0Q090i1KRFE..KGB40..5D201805-202104

*114=TOYOTA/CK8/Y

main17410-YV020i1PP..PAB40201405-201805

17410BGASKET, EXHAUST PIPE

main17451-0Q010i1KRFE..KGB40201405-202104

17430PIPE ASSY, EXHAUST, TAIL

main17430-0Q060i1KRFE..KGB40201405-201505

main17430-0Q080i1KRFE..KGB40..5D201505-202104

main17430-YV020i1PP..PAB40201405-201805

17451GASKET, EXHAUST PIPE

main90917-06069i1KRFE..KGB40201405-202104

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-YV010i1PP..PAB40201405-201805

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0Q010i1PP..PAB40201405-202104

5305

5801

90105W0155

main90105-W0155

90109W0005

main90109-W0005

90501W0005

main90501-W0005

11 parts on this diagram · 2 diagrams in section
