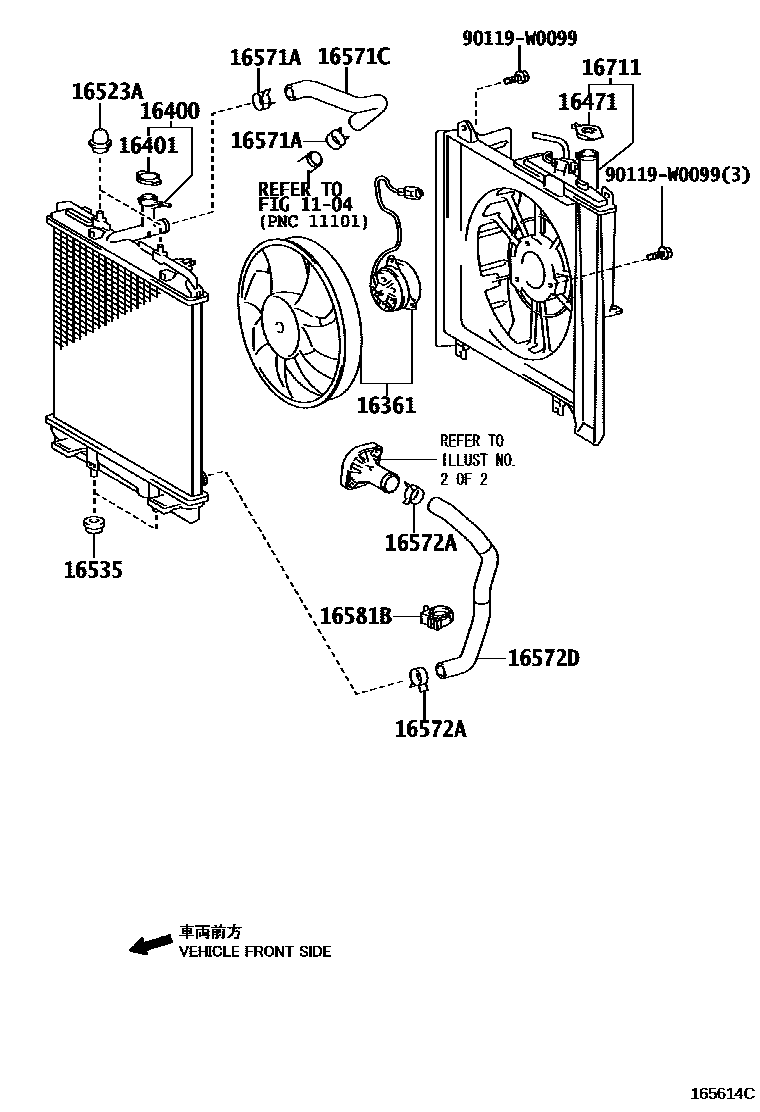

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1RADIATOR 0006 1WATER HOUSING 0007 1WATER BYPASS PIPE

1104

16361FAN

main16362-8EA04i1KRFE..KGB40..5D..LV1201805-202105

TROPIC SPEC&FRONT AIR CONDITIONER-MANUAL

16400RADIATOR ASSY

main16400-YV030i1PP..PAB40201405-201805

main16400-0Q080i1KRFE..KGB40201405-201805

TROPIC SPEC&FRONT AIR CONDITIONER-MANUAL

16401CAP SUB-ASSY, RADIATOR

main16401-31520i1KRFE..KGB40201405-201805

TYPE A:REFER ILLUST.

sub16401-36020

main16401-36020i1KRFE..KGB40..3D..LV1201806-202104

TYPE B:REFER ILLUST.

16471CAP SUB-ASSY, RESERVE TANK

main16471-0Q010

mainSU001-01180

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-0Q010i1PP..PAB40201405-201805

16523ACUSHION, RADIATOR SUPPORT

main16523-0Q010i1KRFE..KGB40..3D201405-202104

16535SUPPORT, RADIATOR, LOWER

main90480-W0001i1KRFE..KGB40..3D201405-202104

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-W0015i1KRFE..KGB40201405-202104

16571CHOSE, RADIATOR, NO.1

main16571-0Q030i1KRFE..KGB40..5D201405-202104

main16571-YV020i1PP..PAB40201405-201805

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-W0015i1KRFE..KGB40..5D201405-202104

16572DHOSE, RADIATOR, NO.2

main16572-0Q050i1KRFE..KGB40201405-202104

main16572-YV020i1PP..PAB40201405-201805

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-YV020i1PP..PAB40201405-201805

main90469-35001i1KRFE..KGB40..3D201405-202104

16711SHROUD, FAN

main16711-0Q080i1KRFE..KGB40..3D..LV1201805-202104

TROPIC SPEC&FRONT AIR CONDITIONER-MANUAL

90119W0099

main90119-W0099

15 parts on this diagram · 7 diagrams in section
