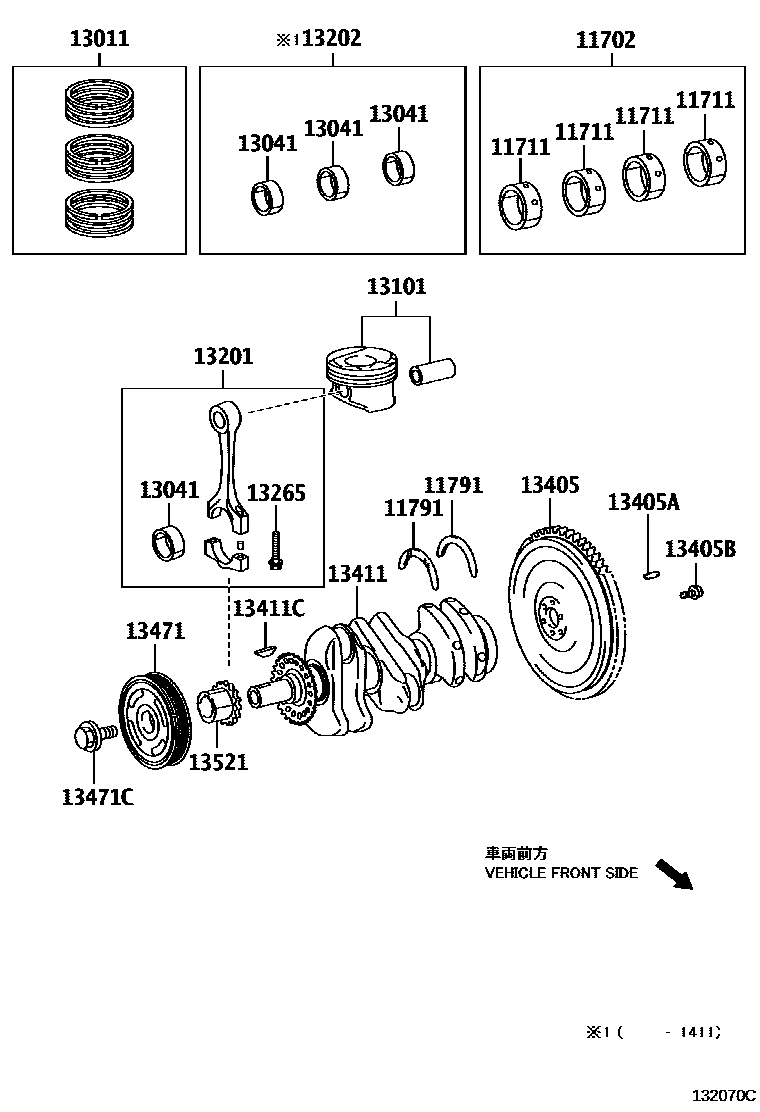

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
O/S 0.125
O/S 0.125
O/S 0.25
O/S 0.25
13011RING SET, PISTON
STD
STD
STD
STD,EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)
STD,ENGINE-1KR(HIGH SULFER FUEL)
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
NO.2,1.471-1.477
NO.2,1.486-1.492
NO.2,1.493-1.499
NO.2,1.500-1.506
NO.1
13101PISTON SUB-ASSY, W/PIN
STD
STD
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
U/S 0.25
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
ENGINE-1KR, WITH(STOP & START SYSTEM)
WITH(STOP & START SYSTEM)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
