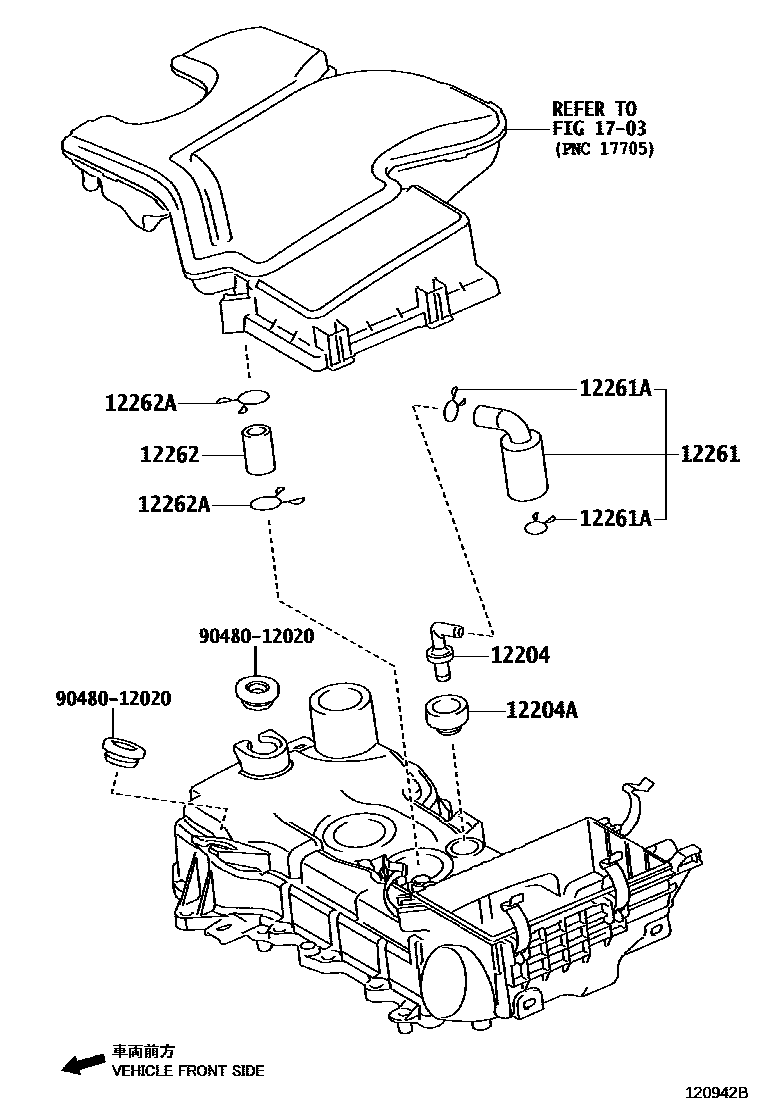

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-40040i1KRFE..KGB40201405-202104

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18016i1KRFE..KGB40201405-202104

12261HOSE, VENTILATION

main12261-0Q010i1KRFE..KGB40..5D202005-202111

main12261-0Q011i1KRFE..KGB40..5D202111

main12261-40040i1KRFE..KGB40201405-201805

main12261-40060i1KRFE..KGB40201805-202004

sub12261-0Q010

mainSU00101108i1PP..PAB40201405

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15120i1KRFE..KGB40201405-202104

12262HOSE, VENTILATION, NO.2

main12262-40040i1KRFE..KGB40201405-202104

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i1KRFE..KGB40201405-202104

1703

9048012020

main90480-12020

8 parts on this diagram · 3 diagrams in section
