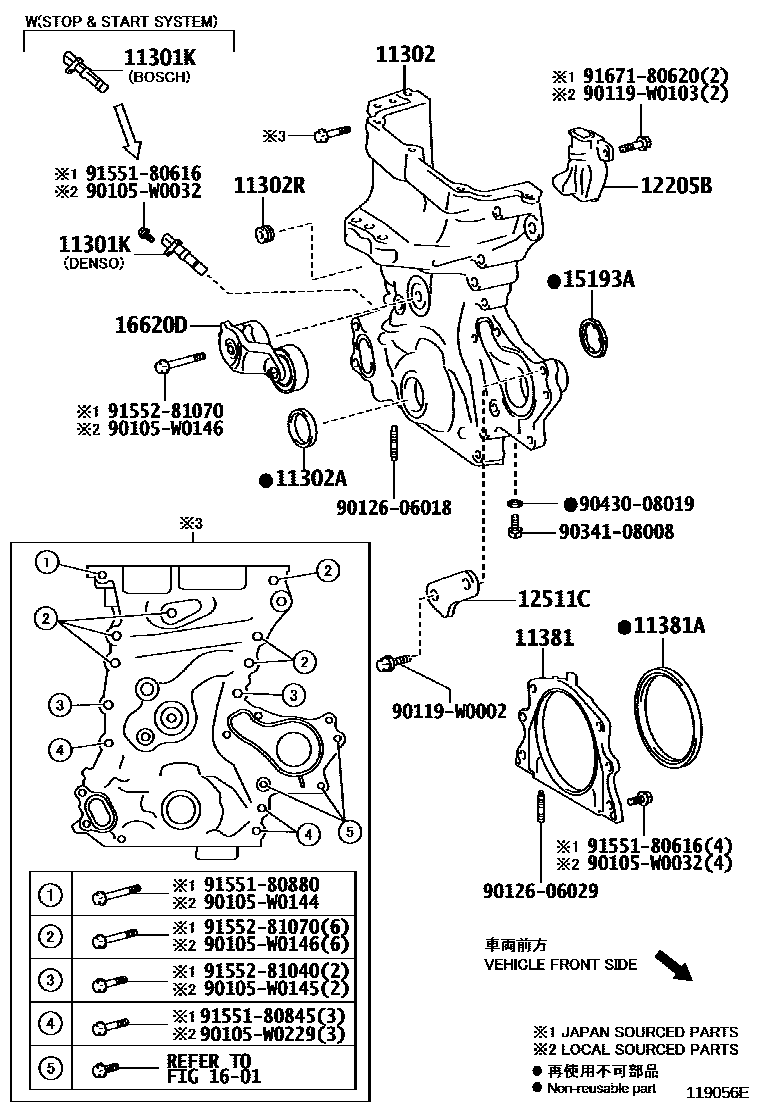

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301KSENSOR, CRANK POSITION

main90919-05062i1KRFE..KGB40¥3,870201405-202104

(J),DENSO

main90919-W5002i1KRFE..KGB40201405-202104

(L),DENSO

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0Q030i1KRFE..KGB40201405-201805

main11310-0Q040i1KRFE..KGB40..3D201805-202104

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38092i1KRFE..KGB40¥400201405-202104

MADE IN JAPAN

main90311-W0013i1KRFE..KGB40201405-202104

MADE IN EUROPE

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90344-53006i1KRFE..KGB40¥130201405-202104

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0Q020i1KRFE..KGB40201405-202104

11381ASEAL, ENGINE REAR OIL

main90311-73005i1KRFE..KGB40..5D¥960201405-202104

(J)

main90311-W0014i1KRFE..KGB40201405-201503

MADE IN EUROPE

sub90311-W0018

main90311-W0018i1KRFE..KGB40201504-202104

(L)

12205BCASE SUB-ASSY, VENTILATION

main12205-0Q010i1KRFE..KGB40201405-201805

main12205-0Q020i1KRFE..KGB40..3D201805-202207

12511CBRACKET, ALTERNATOR

main12511-0Q010i1KRFE..KGB40201405-202104

15193AGASKET, OIL PUMP

main15193-40010i1KRFE..KGB40¥200201405-202104

1601

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-0Q010i1KRFE..KGB40201405-201805

sub16620-0Q021

main16620-0Q020i1KRFE..KGB40..3D201805-202201

sub16620-0Q021

main16620-0Q021i1KRFE..KGB40..5D202202

90105W0032

main90105-W0032¥100

90105W0144

main90105-W0144

90105W0145

main90105-W0145

90105W0146

main90105-W0146

90105W0229

main90105-W0229

90119W0002

main90119-W0002

90119W0103

main90119-W0103

9012606018

main90126-06018¥70

9012606029

main90126-06029¥60

9034108008

main90341-08008¥120

9043008019

main90430-08019¥60

9155180616

main91551-80616¥60

9155180845

main91551-80845¥110

9155180880

main91551-80880¥120

9155281040

main91552-81040¥120

9155281070

main91552-81070¥160

9167180620

main91671-80620¥60

28 parts on this diagram · 2 diagrams in section
