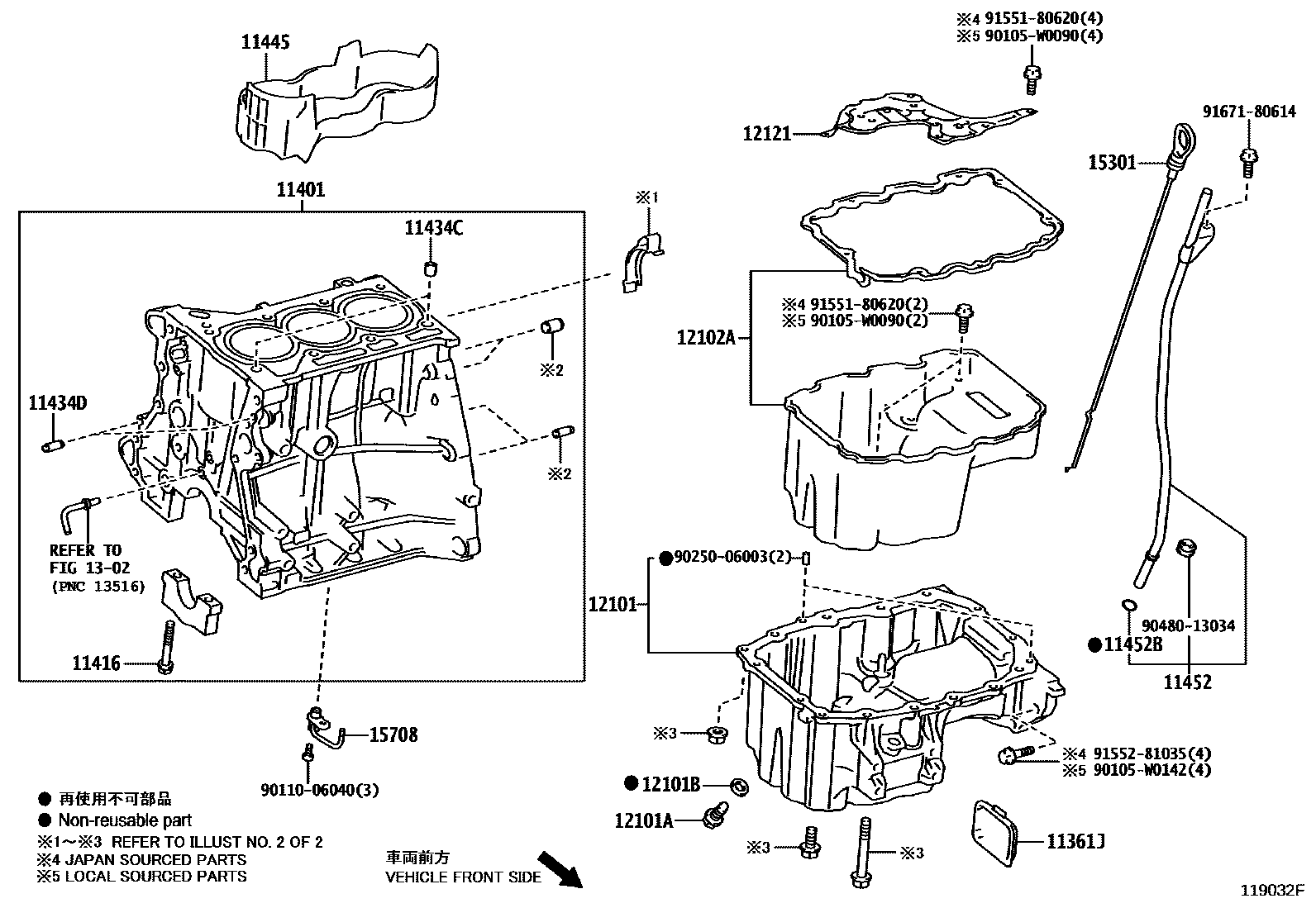

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401BLOCK SUB-ASSY, CYLINDER
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=12
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=14,OD=6
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12121PLATE, OIL PAN BAFFLE, NO.1
1302
15301GAGE SUB-ASSY, OIL LEVEL
MADE IN EUROPE
MADE IN JAPAN
15708NOZZLE SUB-ASSY, OIL, NO.1
90105W0090
main90105-W0090
90105W0142
main90105-W0142
9011006040
main90110-06040
9025006003
main90250-06003
9048013034
main90480-13034
9155180620
main91551-80620
9155281035
main91552-81035
9167180614
main91671-80614
24 parts on this diagram · 6 diagrams in section
