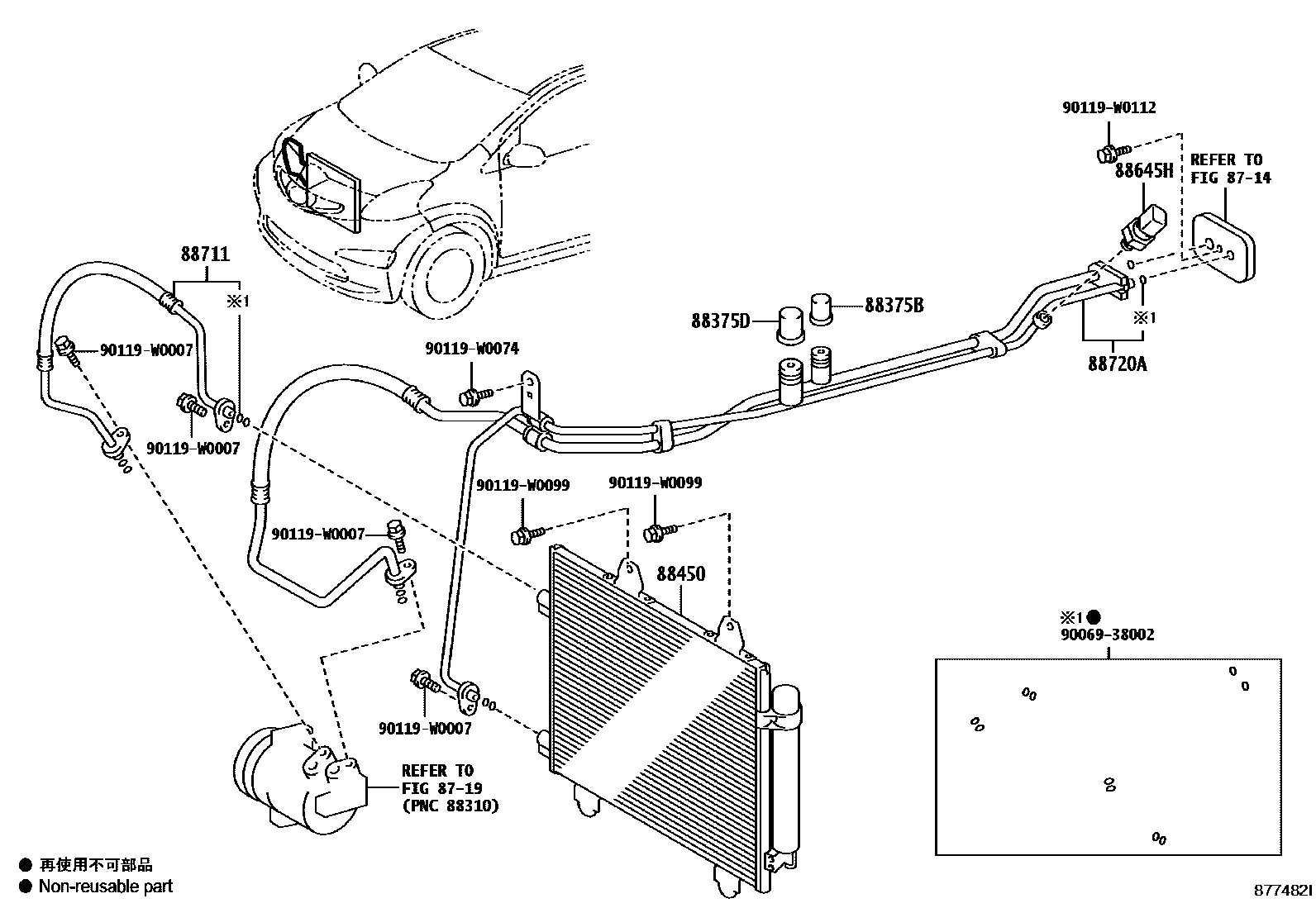

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714

8719

88375BCAP, SERVICE VALVE, NO.1

88375DCAP, SERVICE VALVE, NO.2

88450CONDENSER ASSY, W/RECEIVER

main88450-0H010

main88450-0H020¥54,900

88645HSWITCH, PRESSURE NO.1

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-0H010¥11,600

main88703-0H020

88720AHOSE & ACCESSORY, AIR CONDITIONER

9006938002

main90069-38002¥320

90119W0007

main90119-W0007

90119W0074

main90119-W0074

90119W0099

main90119-W0099¥60

90119W0112

main90119-W0112

13 parts on this diagram · 2 diagrams in section
