ABS & VSC

4708

86652ABUZZER ASSY, SKID CONTROL

89183ASENSOR, YAWRATE

main89183-0H010iKGB10201307

89189BBRACKET, YAWRATE SENSOR

main89189-0H020iKGB10201307

NO.2

main89189-0H030iKGB10201307

NO.1

89541COMPUTER, SKID CONTROL

main89541-0H010iKGB10,WNB10200812-201202

89542SENSOR, SPEED, FRONT RH

main89542-0H010iKGB10,WNB10200502-201202

main89542-0H020iKGB10201202

89543SENSOR, SPEED, FRONT LH

main89542-0H010iKGB10,WNB10200502-201202

main89542-0H020iKGB10201202

89545SENSOR, SPEED, REAR RH

main89544-0H010iKGB10,WNB10200502-201202

main89544-0H020iKGB10201202

89546SENSOR, SPEED, REAR LH

main89544-0H010iKGB10,WNB10200502-201202

main89544-0H020iKGB10201202

827110H010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0H010

895190H010BRACKET, POWER SUPPLY

main89519-0H010

9008011525

main90080-11525

90105W0009

main90105-W0009

90119W0053

main90119-W0053

90148W0011

main90148-W0011

90178W0019

main90178-W0019

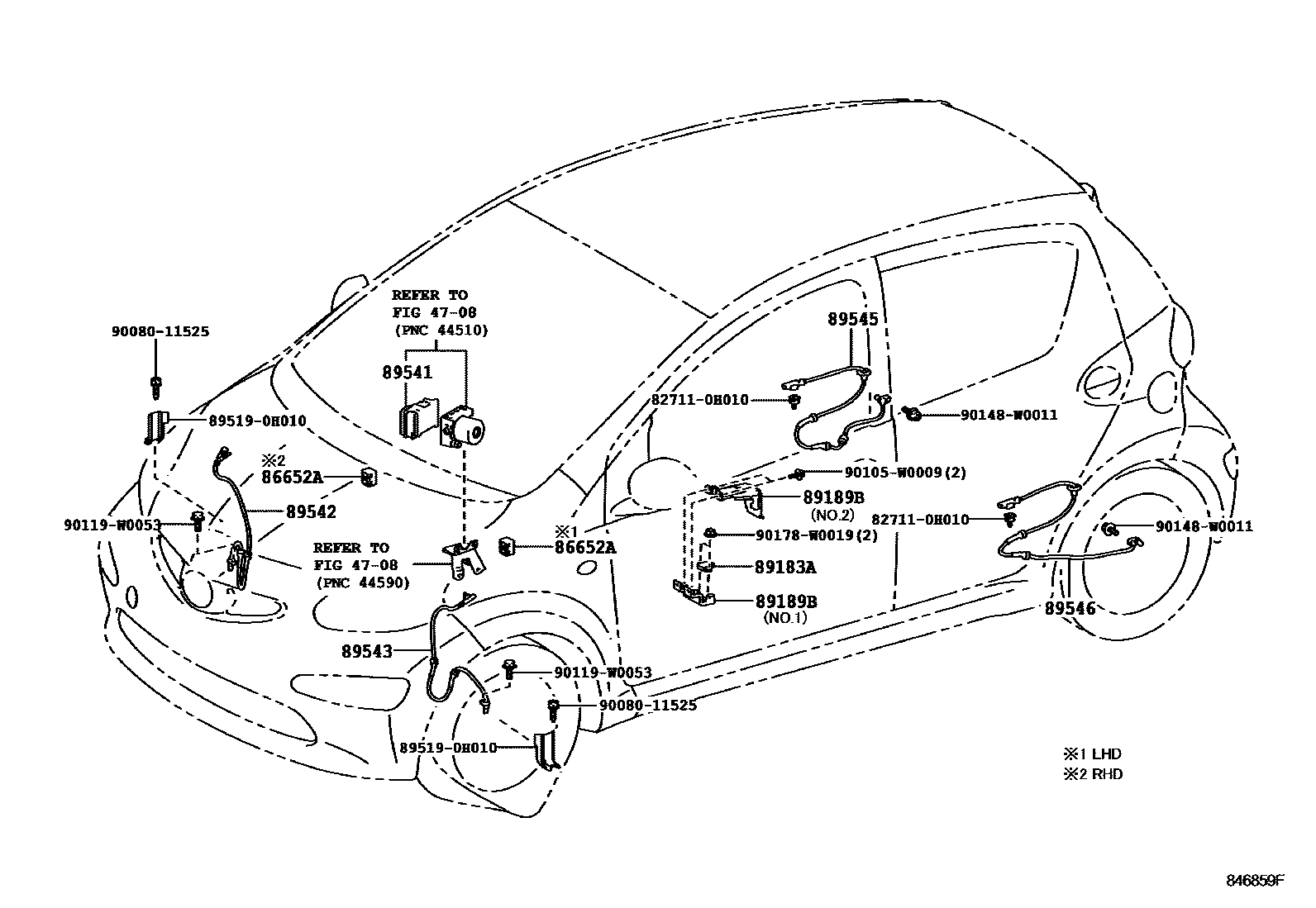

16 parts on this diagram · 1 diagram in section
