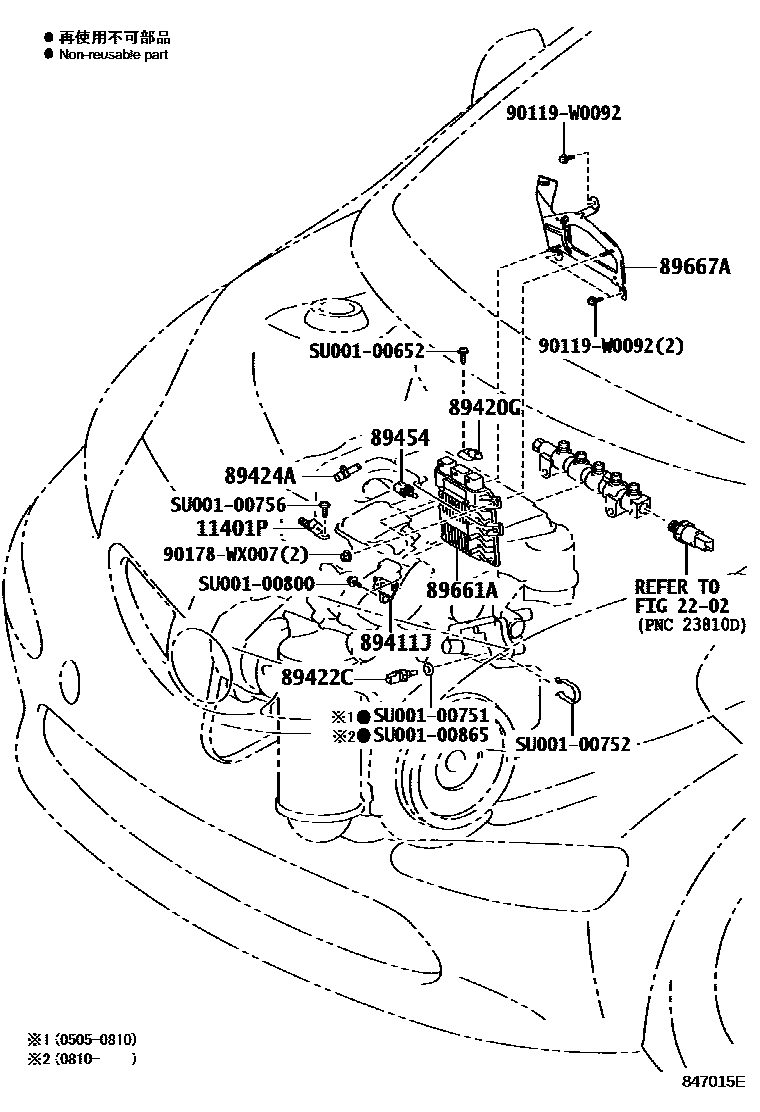

ELECTRONIC CONTROLED DIESEL (ECD)

11401PSENSOR, CYLINDER

mainSU00100641i2WZTV..WNB10200505-201009

2202

89411JSENSOR, ENGINE SPEED

mainSU00100640iWNB10200505-200711

mainSU00100873iWNB10200711-201009

89420GSENSOR ASSY, TURBO PRESSURE

mainSU00100645iWNB10200505-201009

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

mainSU00100639iWNB10200505-201009

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

mainSU00100792iWNB10200505-200704

subSU001-00839

mainSU00100839iWNB10200705-201009

89454SENSOR, FUEL TEMPERATURE

mainSU00100642iWNB10200505-201009

89661ACOMPUTER, ENGINE CONTROL

main89661-YV010iWNB10200505-200703

sub89661-YV011

main89661-YV011iWNB10200703-200710

sub89661-YV012

main89661-YV012iWNB10200711-200902

sub89661-YV013

main89661-YV013iWNB10200903-201009

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-YV010iWNB10..LHD200505-201009

main89667-YV020iWNB10..RHD200505-201009

90119W0092

main90119-W0092

90178WX007

main90178-WX007

SU00100652

mainSU001-00652

SU00100751

mainSU001-00751

SU00100752

mainSU001-00752

SU00100756

mainSU001-00756

SU00100800

mainSU001-00800

SU00100865

mainSU001-00865

17 parts on this diagram · 1 diagram in section
