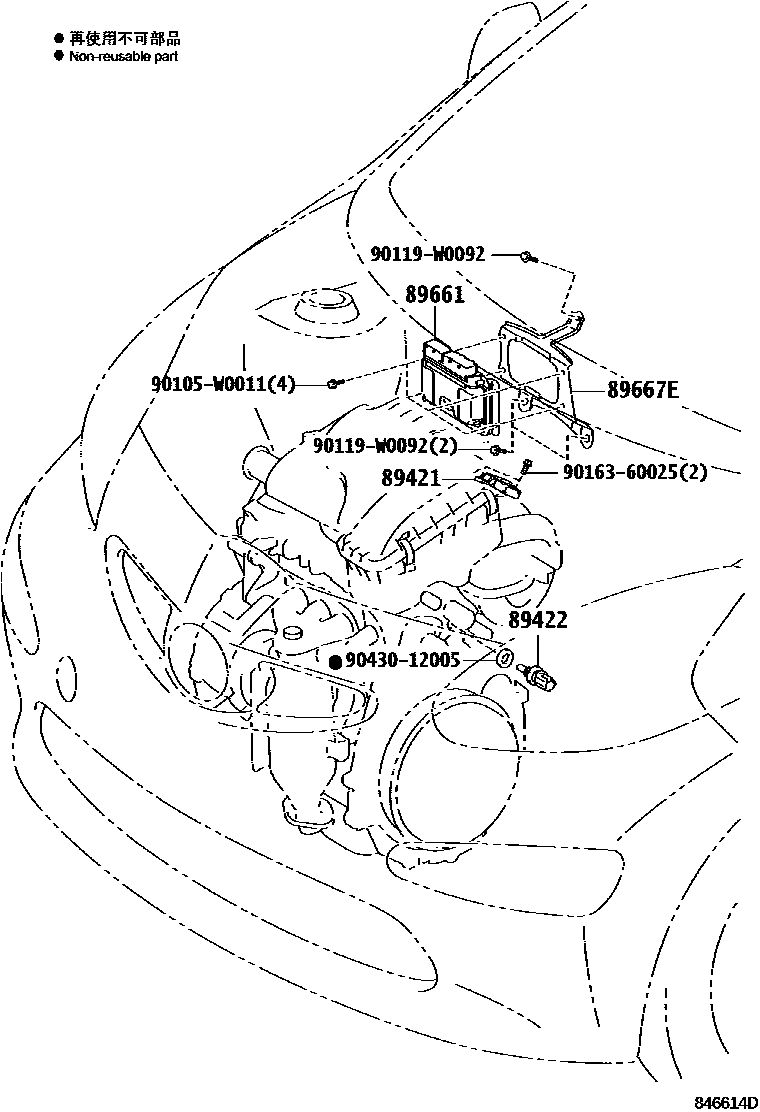

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-52010iKGB10200502-201406

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0H010iKGB10200502-200811

sub89422-33030

main89422-33030iKGB10200811-201406

89661COMPUTER, ENGINE CONTROL

main89661-0H010iKGB10..5FS200505-200508

sub89661-0H012

main89661-0H012iKGB10..5FS200509-200709

sub89661-0H013

main89661-0H013iKGB10..5FS200710-200812

main89661-0H020iKGB10..5F200502-200508

sub89661-0H022

main89661-0H022iKGB10..5F200509-200709

sub89661-0H023

main89661-0H023iKGB10..5F200710-200812

main89661-0H060iKGB10..5FS200812-201009

main89661-0H070iKGB10..5F200812-201009

main89661-0H130iKGB10..5F201009-201202

main89661-0H150iKGB10..5FS201009-201202

main89661-0H210iKGB10..5F201202-201303

main89661-0H230iKGB10..5FS201202-201303

main89661-0H330iKGB10..5F201307

main89661-0H340iKGB10..5F201303-201307

main89661-0H350iKGB10..5FS201307

main89661-0H360iKGB10..5FS201303-201307

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-0H010iKGB10200502-200812

main89667-0H020iKGB10200812-201202

90105W0011

main90105-W0011

90119W0092

main90119-W0092

9016360025

main90163-60025

9043012005

main90430-12005

8 parts on this diagram · 2 diagrams in section
