SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1COWL 0006 1COWL 0007 1COWL 0008 1COWL RELAY 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1CONBINATION SWITCH 0012 1ROOF,FLOOR,DOOR,SEAT & LUGGAG

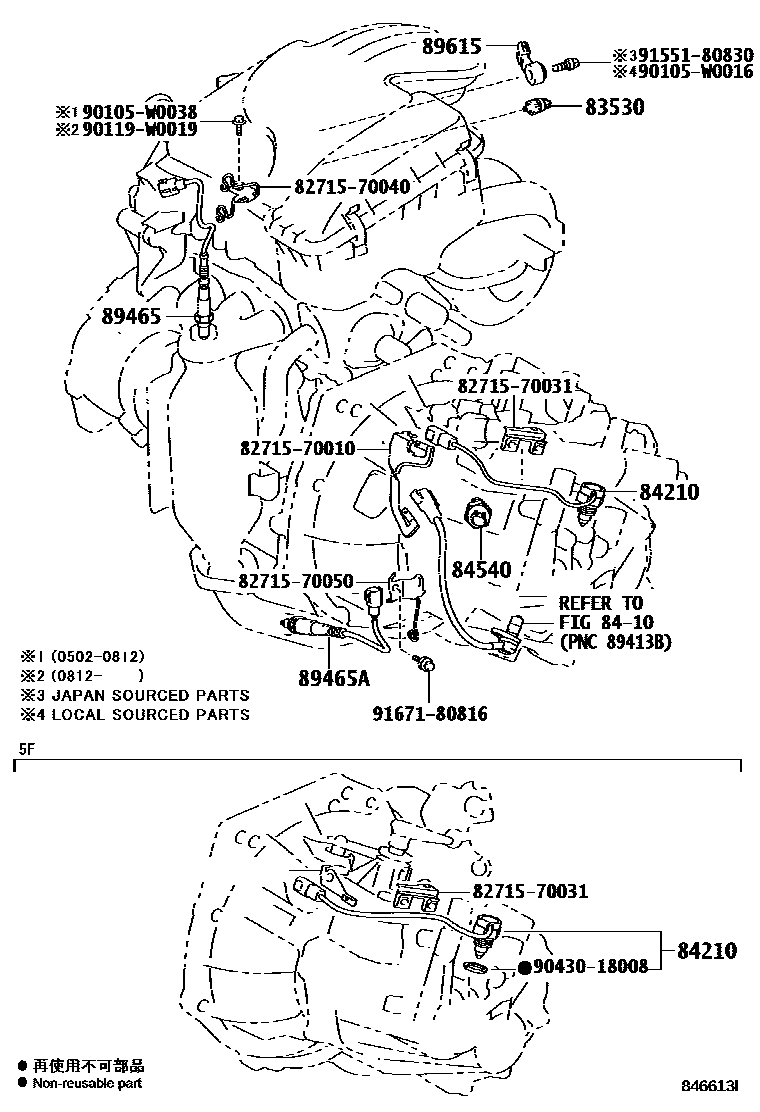

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iKGB10200502-201406

JAEGER

main83530-28020iKGB10200502-201406

DENSO

main83530-60020iKGB10200502-201406

YAZAKI

mainSU00100591iWNB10200505-201009

8410

84210SWITCH ASSY, BACK-UP LAMP

main84210-52020iKGB10200502-200503

sub84210-52021

main84210-52021iKGB10200503-201406

main84210-70010iKGB10201403-201406

sub84210-52021

84540SWITCH ASSY, NEUTRAL START

main84540-70020iKGB10..5FS200505-201406

sub84540-17010

89465SENSOR, OXYGEN

main89465-0H010iKGB10200502-201406

89465ASENSOR, OXYGEN NO.2

main89465-0H020iKGB10200502-201202

89615SENSOR, KNOCK CONTROL

main89615-0H010iKGB10200502-201406

8271570010BRACKET,WIRING HARNESS CLAMP

main82715-70010

8271570031BRACKET,WIRING HARNESS CLAMP

main82715-70031

8271570040BRACKET,WIRING HARNESS CLAMP

main82715-70040

8271570050BRACKET,WIRING HARNESS CLAMP

main82715-70050

90105W0016

main90105-W0016

90105W0038

main90105-W0038

90119W0019

main90119-W0019

9043018008

main90430-18008

9155180830

main91551-80830

9167180816

main91671-80816

17 parts on this diagram · 12 diagrams in section
