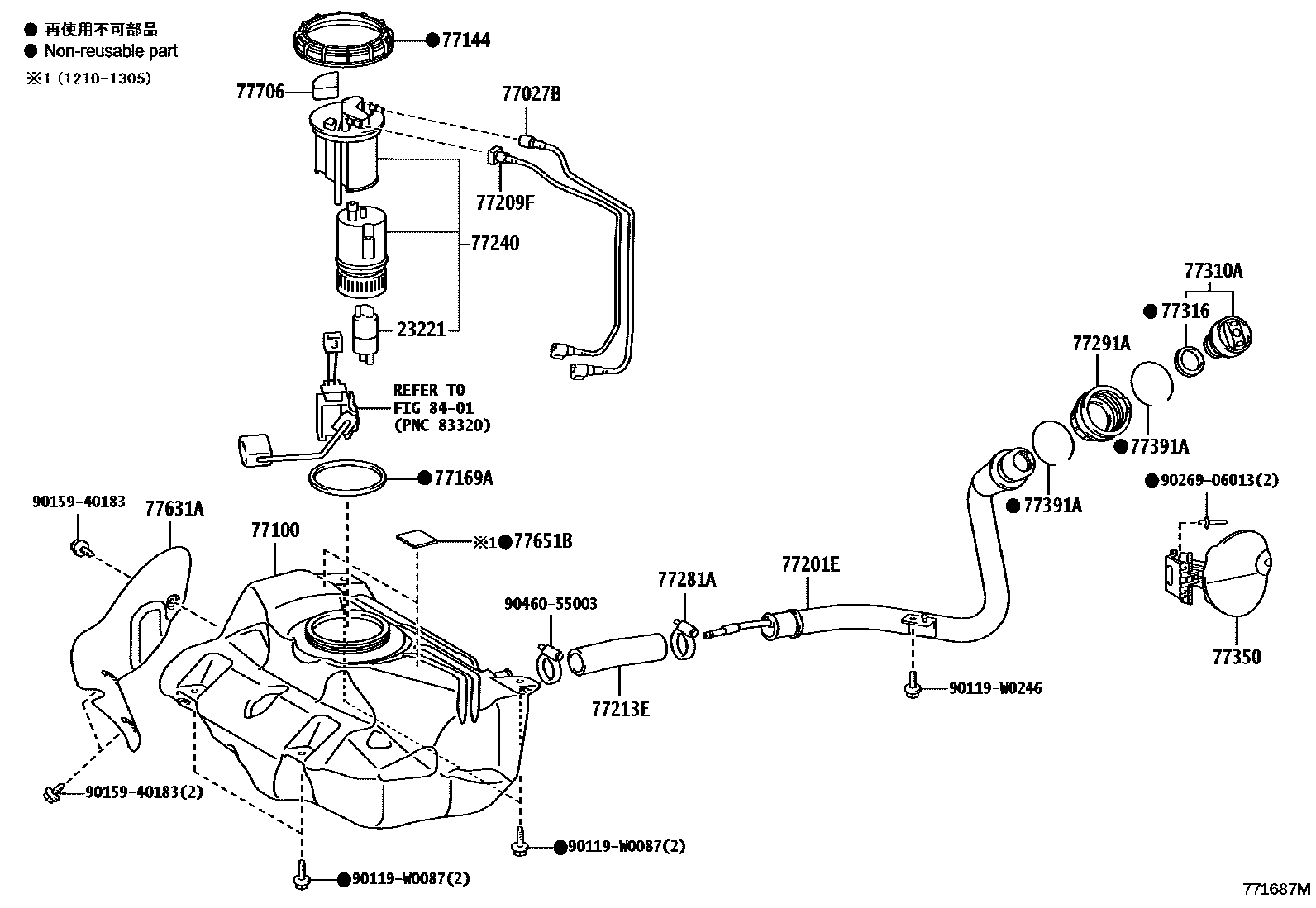

FUEL TANK & TUBE
77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77240TUBE ASSY, FUEL SUCTION
sub77240-0H030
77281ACLAMP, FUEL FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77391ARING, FUEL INLET BOX
77631APROTECTOR, FUEL TANK, LOWER CENTER
77651BCUSHION, FUEL TANK
77706FILTER SUB-ASSY, CHARCOAL CANISTER
sub77706-0H020
8401
90119W0087
main90119-W0087
90119W0246
main90119-W0246
9015940183
9026906013
9046055003
24 parts on this diagram · 4 diagrams in section
