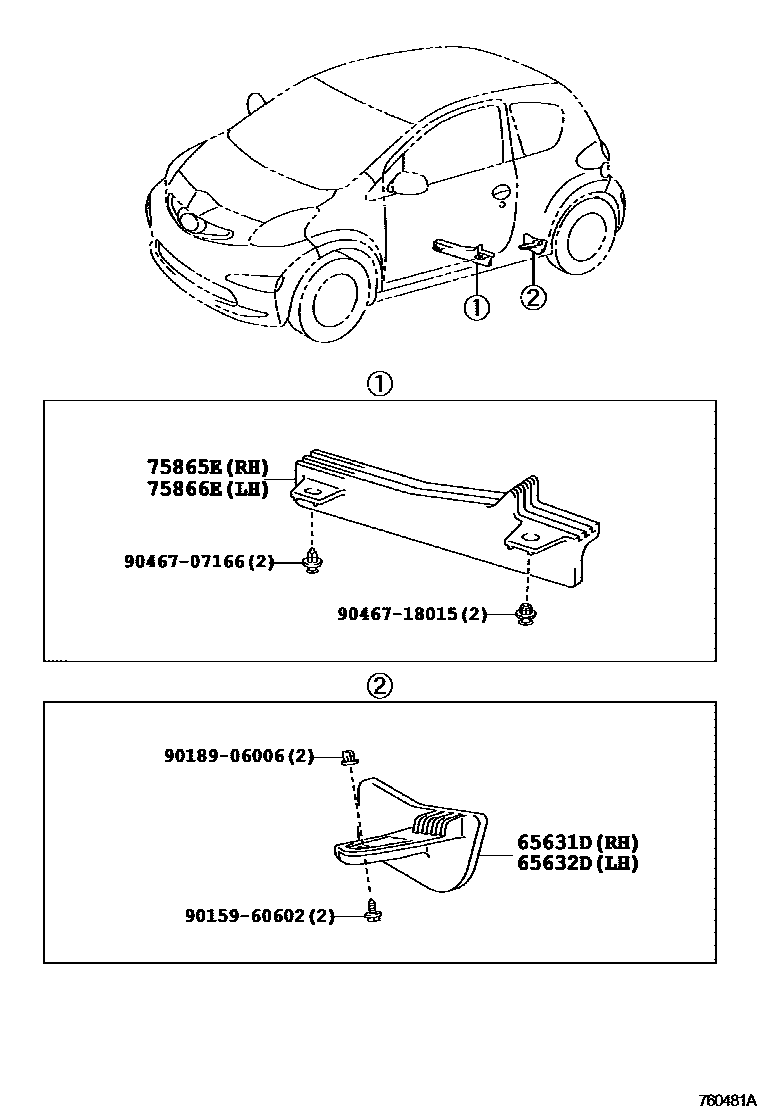

MUDGUARD & SPOILER

0001 1 0002 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0H010iKGB10,WNB10200502-201202

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0H010iKGB10,WNB10200502-201202

75865EPROTECTOR, ROCKER PANEL MOULDING, RH

main75865-0H010iKGB10,WNB10200502-201202

75866EPROTECTOR, ROCKER PANEL MOULDING, LH

main75866-0H010iKGB10,WNB10200502-201202

9015960602

main90159-60602

9018906006

main90189-06006

9046707166

main90467-07166

9046718015

main90467-18015

8 parts on this diagram · 2 diagrams in section
