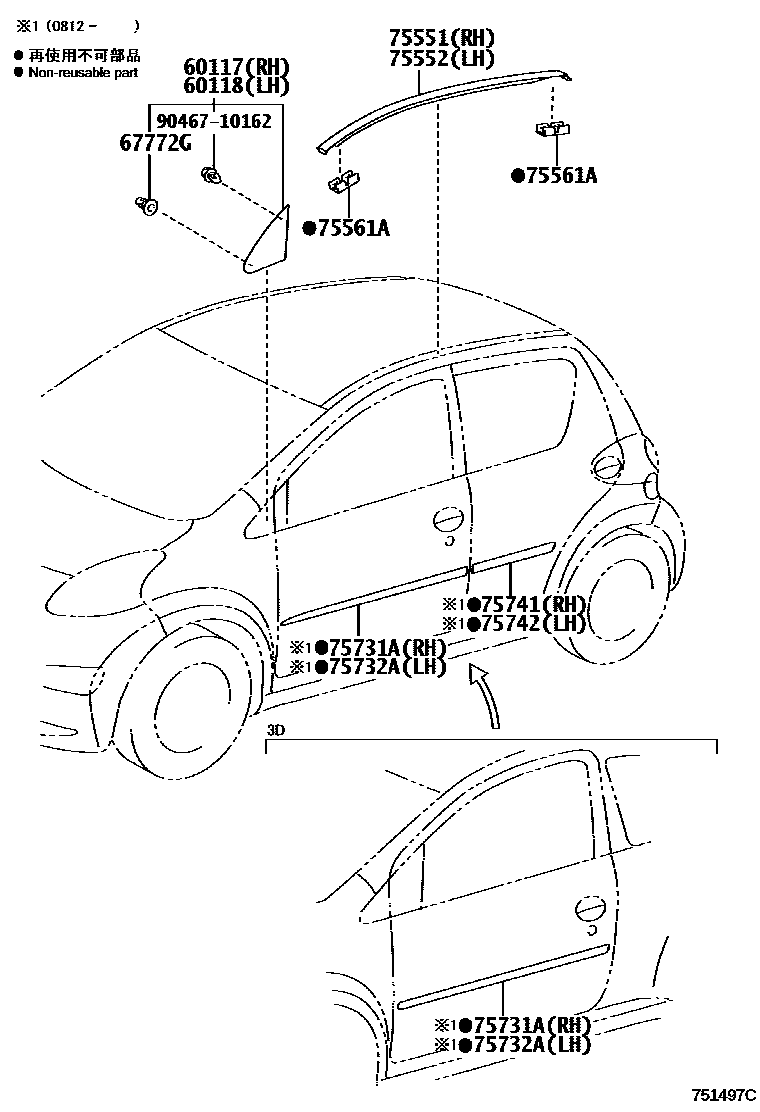

SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
67772GCAP, FRONT PILLAR COVER
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75731AMOULDING, FRONT DOOR, OUTSIDE RH
PAINT REQ.,T IP+SP PACKAGE
PAINT REQ.,T COLOR RING
PAINT REQ.,T IP+SP PACKAGE
PAINT REQ.,T COLOR RING
75732AMOULDING, FRONT DOOR, OUTSIDE LH
PAINT REQ.,T COLOR RING
PAINT REQ.,T IP+SP PACKAGE
PAINT REQ.,T COLOR RING
PAINT REQ.,T IP+SP PACKAGE
75741MOULDING, REAR DOOR, OUTSIDE RH
PAINT REQ.,T COLOR RING
PAINT REQ.,T IP+SP PACKAGE
75742MOULDING, REAR DOOR, OUTSIDE LH
PAINT REQ.,T COLOR RING
PAINT REQ.,T IP+SP PACKAGE
9046710162
main90467-10162
11 parts on this diagram · 1 diagram in section
