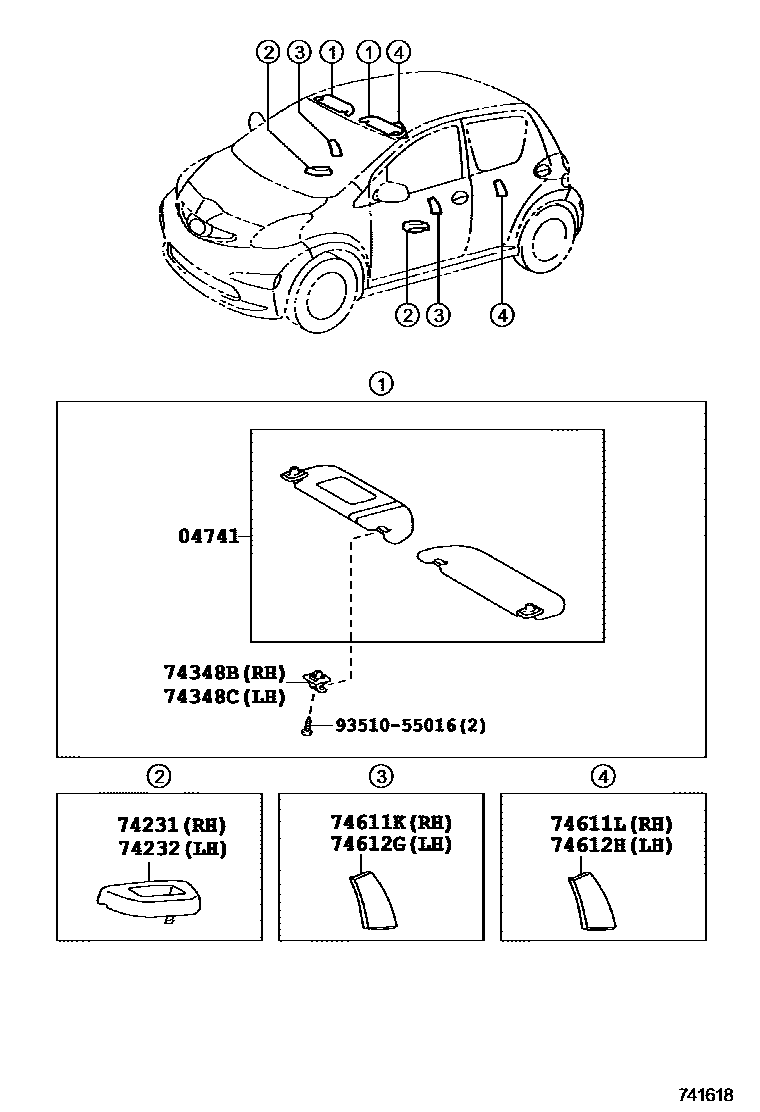

ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
MEDIUM GREY,TRIM1#
POWER PACKAGE,MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
POWER PACKAGE,MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
POWER PACKAGE,DARK GREY,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
MEDIUM GREY,TRIM1#
POWER PACKAGE,MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
POWER PACKAGE,MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
POWER PACKAGE,DARK GREY,TRIM1#
74348BHOLDER, VISOR, RH
LIGHT GREY,TRIM1#
LIGHT GREY,TRIM1#,2#
74348CHOLDER, VISOR, LH
LIGHT GREY,TRIM1#
LIGHT GREY,TRIM1#,2#
74611KCOVER, ASSIST GRIP, RH FRONT SIDE
74611LCOVER, ASSIST GRIP, RH REAR SIDE
74612GCOVER, ASSIST GRIP, LH FRONT SIDE
74612HCOVER, ASSIST GRIP, LH REAR SIDE
9351055016
10 parts on this diagram · 1 diagram in section
