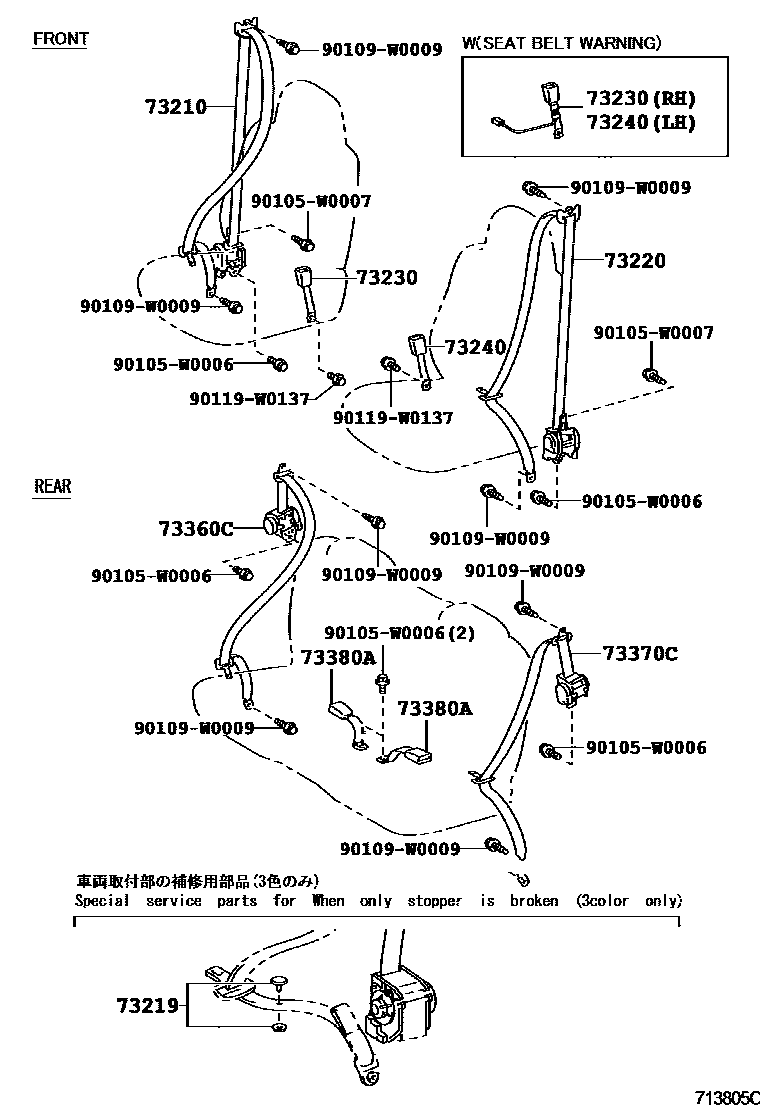

SEAT BELT & CHILD RESTRAINT SEAT
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/DK.GRAY,TRIM1#
BLACK/DK.GRAY,TRIM1#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK/DK.GRAY,TRIM1#
BLACK/DK.GRAY,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
DK.GRAY/BLACK,TRIM1#
DK.GRAY/BLACK,TRIM1#,2#
DK.GRAY/BLACK,TRIM1#
DK.GRAY/BLACK,TRIM1#,2#
DK.GRAY/BLACK,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
DK.GRAY/BLACK,TRIM1#,2#
DK.GRAY/BLACK,TRIM1#
DK.GRAY/BLACK,TRIM1#,2#
DK.GRAY/BLACK,TRIM1#
DK.GRAY/BLACK,TRIM1#
73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH
RETROFITTABLE-N1,BLACK,TRIM1#
BLACK,TRIM1#
N1 PACKAGE,BLACK,TRIM1#
BLACK,TRIM1#,2#
N1 PACKAGE,BLACK,TRIM1#,2#
N1 PACKAGE&SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE),BLACK,TRIM1#,2#
N1 PACKAGE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),BLACK,TRIM1#,2#
BLACK/DK.GRAY,TRIM1#
N1 PACKAGE,BLACK/DK.GRAY,TRIM1#
73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH
BLACK,TRIM1#
N1 PACKAGE,BLACK,TRIM1#
RETROFITTABLE-N1,BLACK,TRIM1#
BLACK,TRIM1#,2#
N1 PACKAGE,BLACK,TRIM1#,2#
N1 PACKAGE&SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE),BLACK,TRIM1#,2#
N1 PACKAGE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),BLACK,TRIM1#,2#
BLACK/DK.GRAY,TRIM1#
N1 PACKAGE,BLACK/DK.GRAY,TRIM1#
73380ABELT ASSY, REAR SEAT, INNER
DK.GRAY,TRIM1#
N1 PACKAGE,DK.GRAY,TRIM1#
RETROFITTABLE-N1,DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,2#
N1 PACKAGE,DK.GRAY,TRIM1#,2#
N1 PACKAGE&SRS AIR BAG-WITH(DRIVER&PASSENGER E-TYPE),DK.GRAY,TRIM1#,2#
N1 PACKAGE&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DK.GRAY,TRIM1#,2#
BLACK/DK.GRAY,TRIM1#
N1 PACKAGE,BLACK/DK.GRAY,TRIM1#
90105W0006
main90105-W0006
90105W0007
main90105-W0007
90109W0009
main90109-W0009
90119W0137
main90119-W0137
12 parts on this diagram · 1 diagram in section
