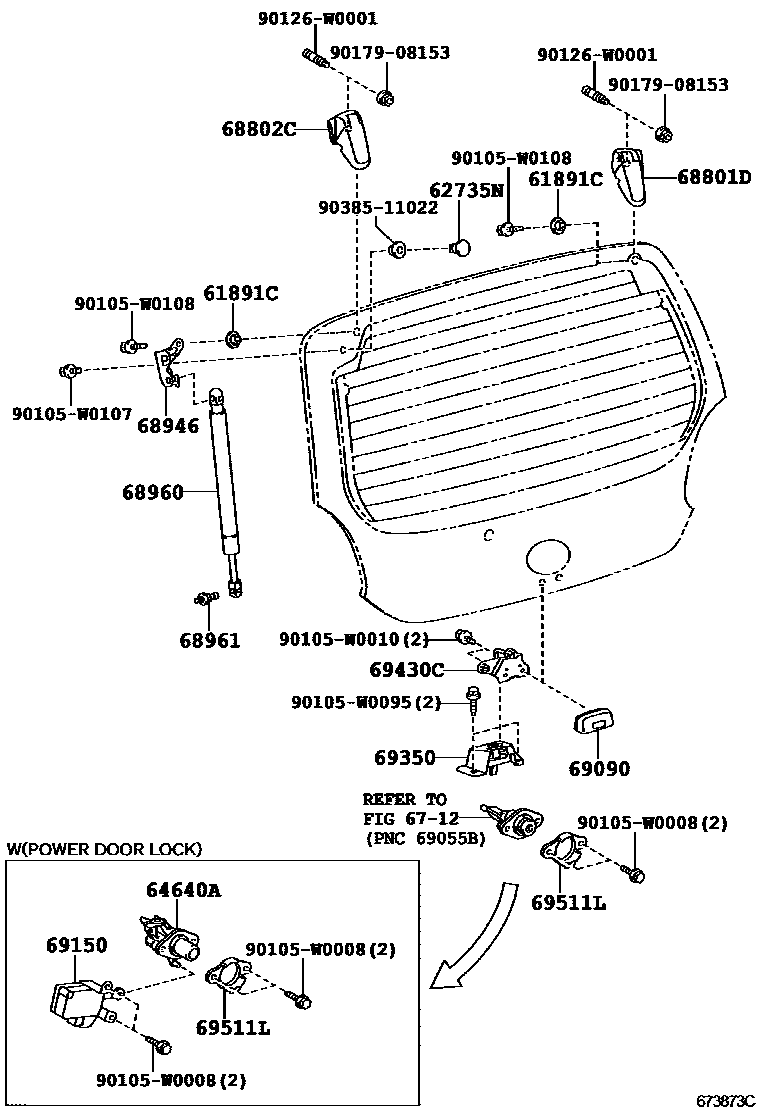

BACK DOOR LOCK & HANDLE

61891CRETAINER, BACK DOOR UPPER HINGE

main61891-0H010×2iKGB10,WNB10200502-200812

62735NRETAINER, BACK DOOR HINGE

main62735-28040iKGB10,WNB10200502-200812

64640AOPENER ASSY, BACK DOOR LOCK

main64640-0H010iKGB10..LHD..LEDIN200502-200812

POWER PACKAGE

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-0H010iKGB10,WNB10200502-200812

main68801-0H011iWNB10201003-201009

68802CHINGE SUB-ASSY, BACK DOOR, LH

main68802-0H010iKGB10,WNB10200502-200812

main68802-0H011iWNB10201003-201009

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0H010iKGB10,WNB10200502-200812

68960STAY ASSY, BACK DOOR, LH

main68950-0H010iKGB10,WNB10200502-200812

68961BOLT, BACK DOOR STAY

main68961-05010iKGB10,WNB10200502-200812

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-0H010iKGB10,WNB10200502-200812

main69090-0H011iKGB10201202

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-0H010iKGB10..LHD..LEDIN200502-200812

POWER PACKAGE

69350LOCK ASSY, BACK DOOR

main69350-0H010iKGB10,WNB10200502-200812

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0H010iWNB10200812-201009

69511LRETAINER, BACK DOOR LOCK CYLINDER

main69561-0H030supersedes 69561-0H010iWNB10200812-201009

90105W0008

main90105-W0008

90105W0010

main90105-W0010

90105W0095

main90105-W0095

90105W0107

main90105-W0107

90105W0108

main90105-W0108

90126W0001

main90126-W0001

9017908153

main90179-08153

9038511022

main90385-11022

21 parts on this diagram · 1 diagram in section
