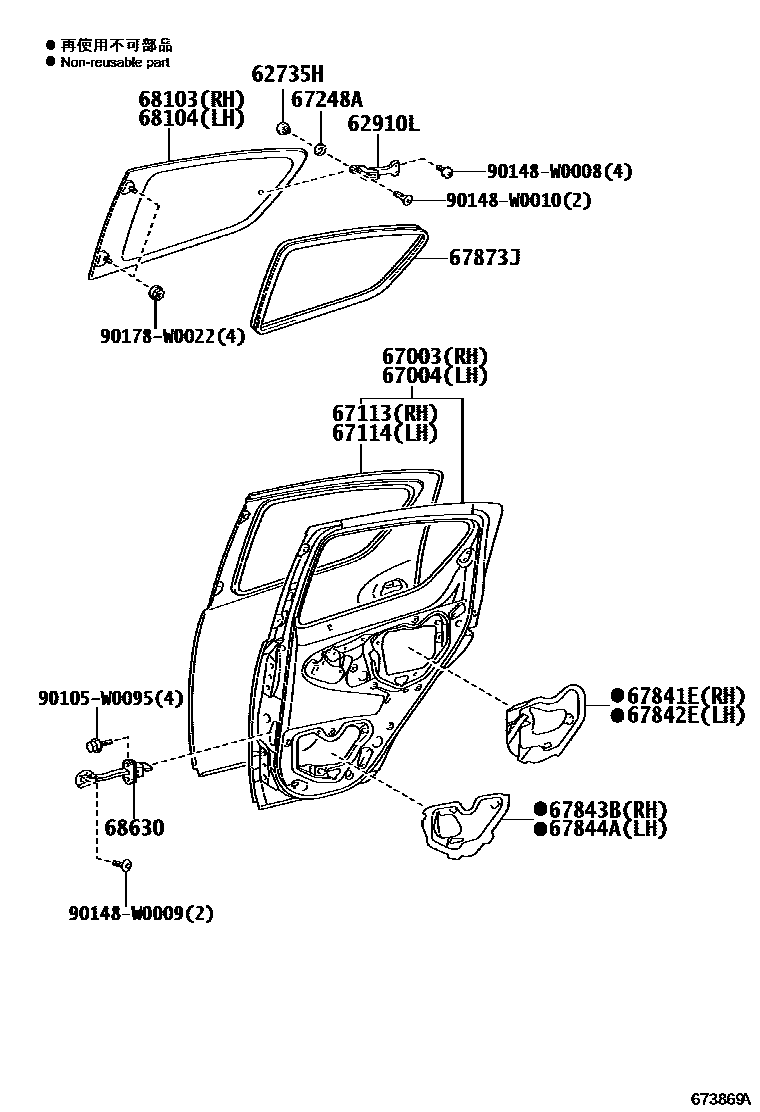

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62735HRETAINER, QUARTER WINDOW HINGE

main62735-0H010iKGB10,WNB10..5D200502-201202

62910LLOCK ASSY, SIDE WINDOW

main62910-0H010iKGB10..5D¥1,480200502-201202

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0H010iKGB10,WNB10..5D200502-201405

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0H010iKGB10,WNB10..5D200502-201405

67113PANEL, REAR DOOR, OUTER RH

main67113-0H010iKGB10,WNB10..5D200502-201202

67114PANEL, REAR DOOR, OUTER LH

main67114-0H010iKGB10,WNB10..5D200502-201202

67248APLATE, REAR DOOR GLASS

main67248-0H010iKGB10..5D200502-201202

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0H010iKGB10,WNB10..5D200502-201202

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0H010iKGB10,WNB10..5D200502-201202

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-0H010iKGB10,WNB10..5D200502-201202

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-0H010iKGB10,WNB10..5D200502-201202

67873JWEATHERSTRIP, REAR DOOR GLASS, FRONT

main67873-0H010iKGB10,WNB10..5D200502-200609

sub67873-0H011¥8,100

main67873-0H011iKGB10,WNB10..5D¥8,100200610-201202

68103GLASS SUB-ASSY, REAR DOOR, RH

main68130-0H010iKGB10,WNB10..5D200502-201304

*TT,T=3.1,GREEN

sub68130-0H011

main68130-0H011iKGB10..5D201305-201310

*TT,T=3.1,GREEN

sub68130-0H012

main68130-0H012iKGB10..5D201311-201406

*TT,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68140-0H010iKGB10,WNB10..5D200502-201304

*TT,T=3.1,GREEN

sub68140-0H011

main68140-0H011iKGB10..5D201305-201310

*TT,T=3.1,GREEN

sub68140-0H012

main68140-0H012iKGB10..5D201311-201406

*TT,T=3.1,GREEN

68630CHECK ASSY, REAR DOOR

main68630-0H010iKGB10,WNB10..5D200502-201110

main68630-0H011iKGB10..5D201111-201202

90105W0095

main90105-W0095¥100

90148W0008

main90148-W0008

90148W0009

main90148-W0009

90148W0010

main90148-W0010

90178W0022

main90178-W0022

20 parts on this diagram · 2 diagrams in section
