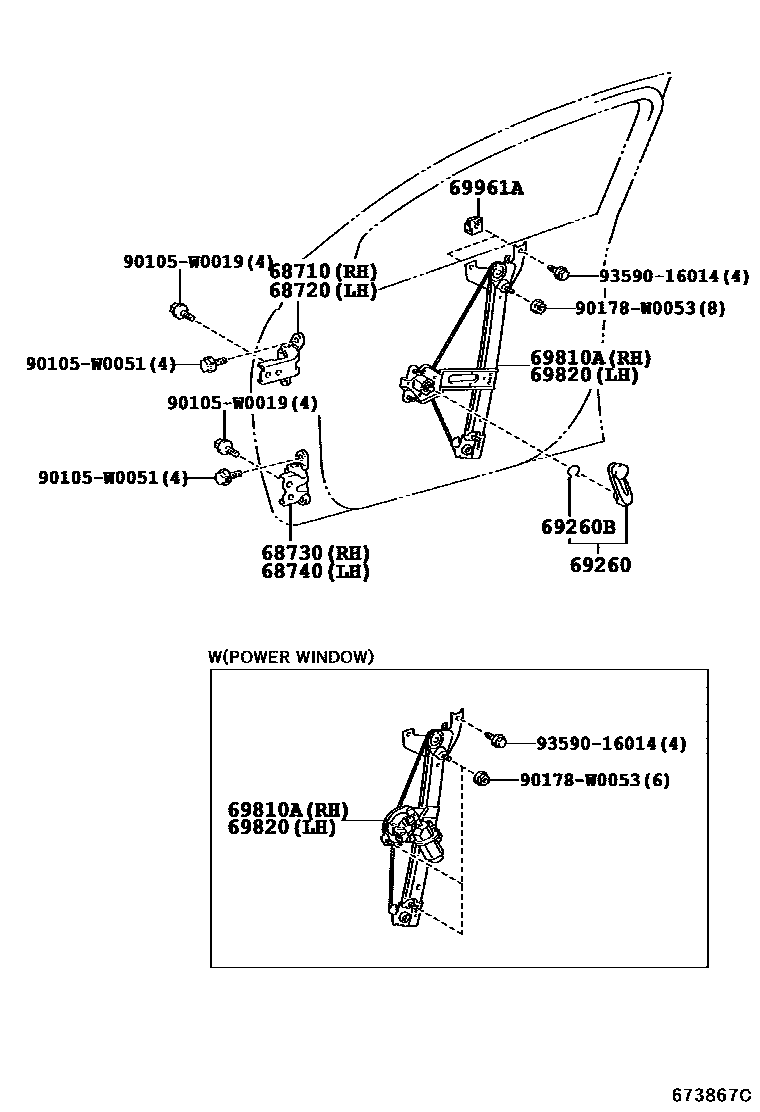

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0H010iKGB10,WNB10200502-201405

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0H010iKGB10,WNB10200502-201405

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0H010iKGB10,WNB10200502-201405

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0H010iKGB10,WNB10200502-201405

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0D010-B5iKGB10..LEDIN200502-200812

MEDIUM GREY,TRIM1#

main69260-0D010-B5iKGB10..LEDIN200502-200812

POWER PACKAGE,MEDIUM GREY,TRIM1#

main69260-0D010-B5iKGB10..LEDIN200812-201202

MEDIUM GREY,TRIM1#,2#

main69260-0D010-B5iKGB10..LEDIN200812-201202

POWER PACKAGE,MEDIUM GREY,TRIM1#,2#

main69260-0D010-B6iKGB10..LEDIN201202-201405

DARK GREY,TRIM1#

main69260-0D010-B6iKGB10..LEDIN201202-201405

POWER PACKAGE,DARK GREY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90524-15005iKGB10..LEDIN200812-201202

POWER PACKAGE

main90524-15005iKGB10..LEDIN200502-200812

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0H010iKGB10..LEDIN200502-201202

main69810-0H020iKGB10..LHD..LEDIN200502-201202

POWER PACKAGE

main69810-0H020iWNB10200812-201009

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0H010iKGB10..LEDIN200502-201202

main69820-0H020iKGB10..LHD..LEDIN200502-201202

POWER PACKAGE

main69820-0H020iWNB10200812-201009

69961ARETAINER, FRONT DOOR GLASS

main69961-0H020iKGB10,WNB10200502-201103

sub69961-0H021

main69961-0H021iKGB10201104-201202

90105W0019

main90105-W0019

90105W0051

main90105-W0051

90178W0053

main90178-W0053

9359016014

main93590-16014

13 parts on this diagram · 1 diagram in section
