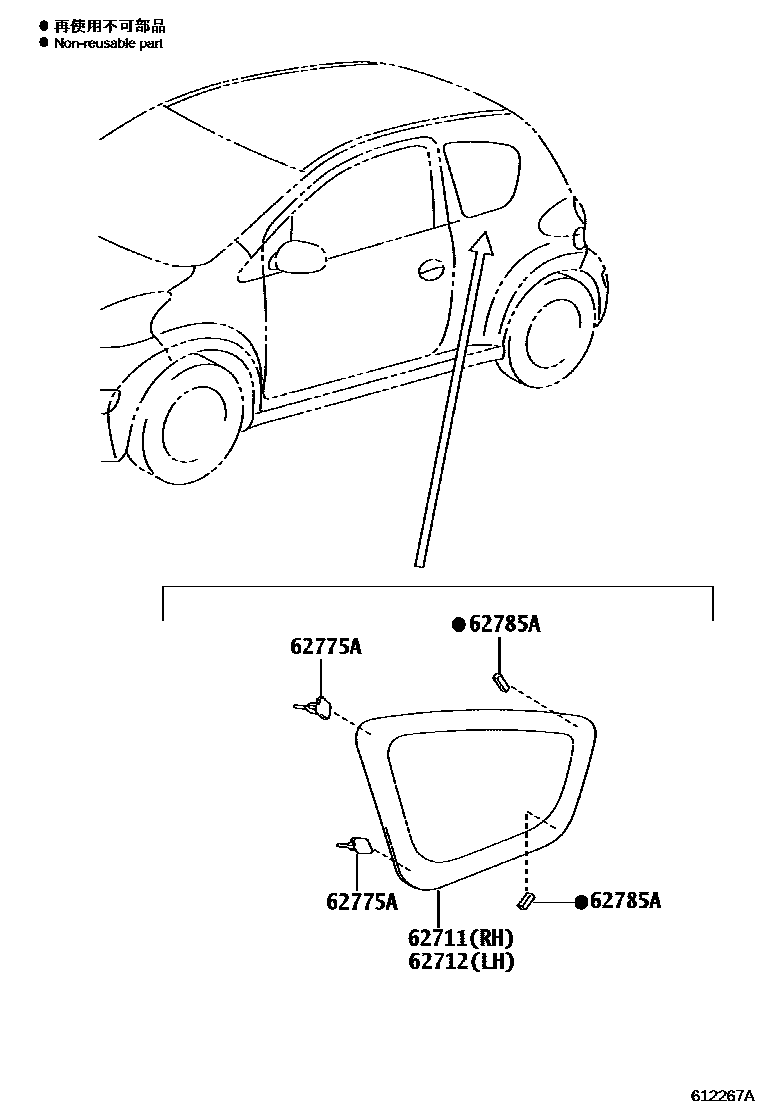

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-0H010iWNB10..3D200502-201202

*TT,T=3.1,GREEN

62712GLASS, QUARTER WINDOW, LH

main62712-0H010iKGB10,WNB10..3D200502-201202

*TT,T=3.1,GREEN

62775ACLIP, QUARTER WINDOW

main62775-68030iWNB10..3D200502-201202

LOWER

main62775-70010iKGB10..3D200502-201202

UPPER

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030iKGB10,WNB10..3D200502-201202

4 parts on this diagram · 1 diagram in section
