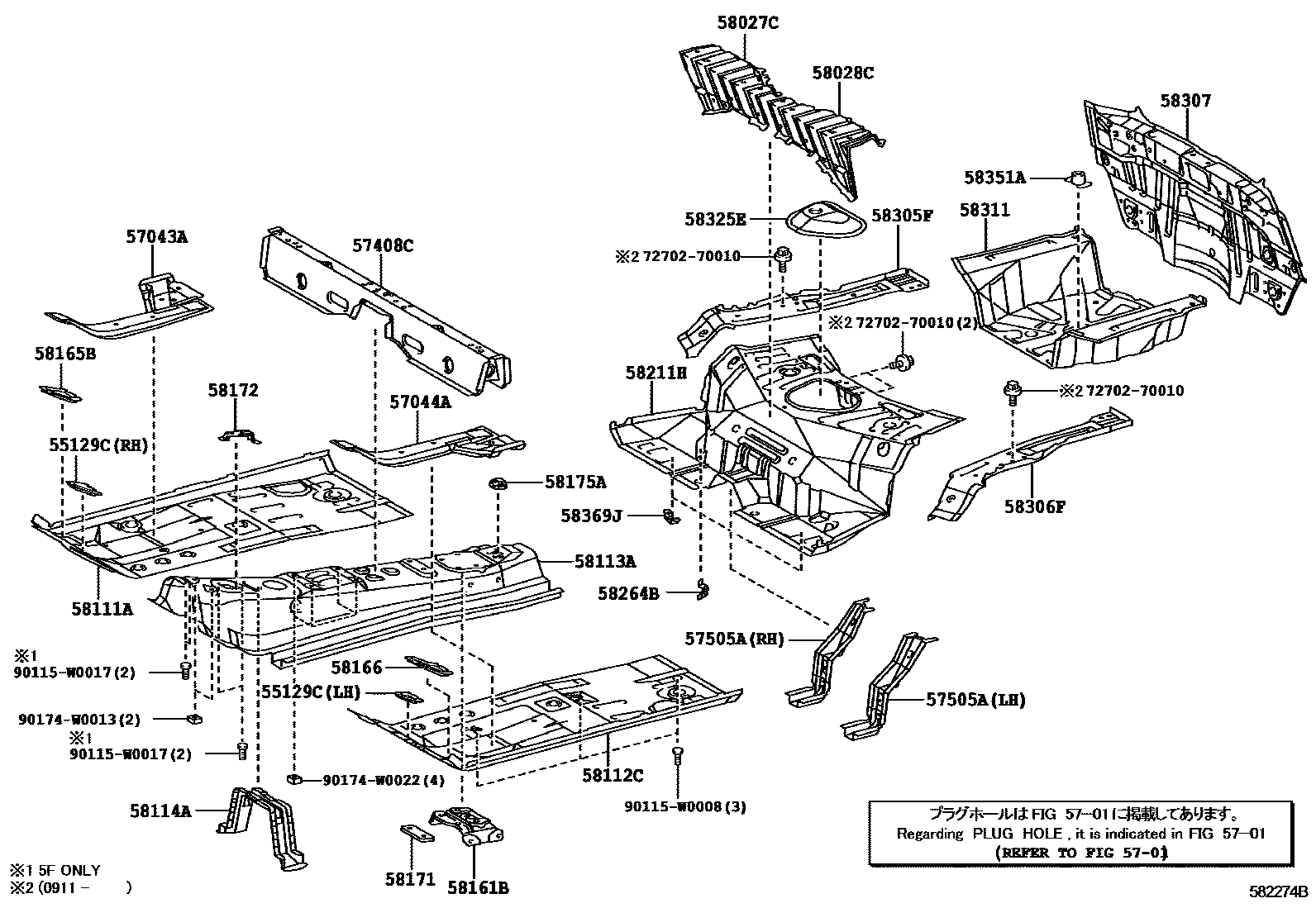

FLOOR PAN & LOWER BACK PANEL

55129CCOVER, DASH PANEL HOLE

main55129-0H010iKGB10200812-201202

RH

main55139-0H010iKGB10201202

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0H010iKGB10,WNB10200502-200702

main57043-0H011iKGB10201304

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0H010iKGB10,WNB10200703-200812

main57044-0H011iKGB10201304

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-0H010iKGB10,WNB10200502-200608

main57408-0H011iKGB10,WNB10200609-200702

57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-0H010iKGB10,WNB10200502-200812

RH

main57506-0H010iKGB10200812-201202

LH

58027CPANEL SUB-ASSY, CENTER FLOOR SIDE, RH

main58027-0H010iWNB10200812-201009

58028CPANEL SUB-ASSY, CENTER FLOOR SIDE, LH

main58028-0H010iKGB10,WNB10200502-200812

58111APAN, FRONT FLOOR, RH

main58111-0H010iKGB10,WNB10200502-200702

58112CPAN, FRONT FLOOR, LH

main58112-0H901iWNB10200812-201009

58113APANEL, FRONT FLOOR, CENTER

main58113-0H901iKGB10,WNB10..5F200502-200812

sub58113-0H903

main58113-0H902iKGB10..5FS200505-200812

sub58113-0H903

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0H010iKGB10200812-201202

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0H010iKGB10,WNB10200502-200812

main58161-0H011iKGB10201404-201405

sub58161-0H012

58165BCOVER, FRONT FLOOR, RH

main58165-0H010iKGB10,WNB10200502-200812

58166COVER, FRONT FLOOR, LH

main58166-0H010iKGB10,WNB10200502-200812

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0H010iKGB10,WNB10200502-200812

sub58171-0H011

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-0H010iKGB10,WNB10200502-200812

sub58172-0H011

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-0H010iKGB10,WNB10200502-200812

sub58175-0H011

58211HPAN, CENTER FLOOR

main58211-0H010iKGB10,WNB10200502-200812

58264BBRACKET, PARKING BRAKE CABLE GUIDE

main58264-0H020×2iKGB10,WNB10200502-200812

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-0H010iKGB10,WNB10200502-200812

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-0H010iKGB10,WNB10200502-200812

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0H010iKGB10,WNB10200502-200812

58311PAN, REAR FLOOR

main58311-0H010iKGB10,WNB10200502-200812

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0H010iKGB10,WNB10200502-200812

main58325-0H021iKGB10201306

58351ABRACKET, SPARE WHEEL CARRIER

main58351-0H010iKGB10,WNB10200502-200812

58369JBRACKET, REAR FLOOR BRACE

main58369-0H010×2iKGB10,WNB10200502-200812

7270270010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-70010

90115W0008

main90115-W0008

90115W0017

main90115-W0017

90174W0013

main90174-W0013

90174W0022

main90174-W0022

32 parts on this diagram · 1 diagram in section
