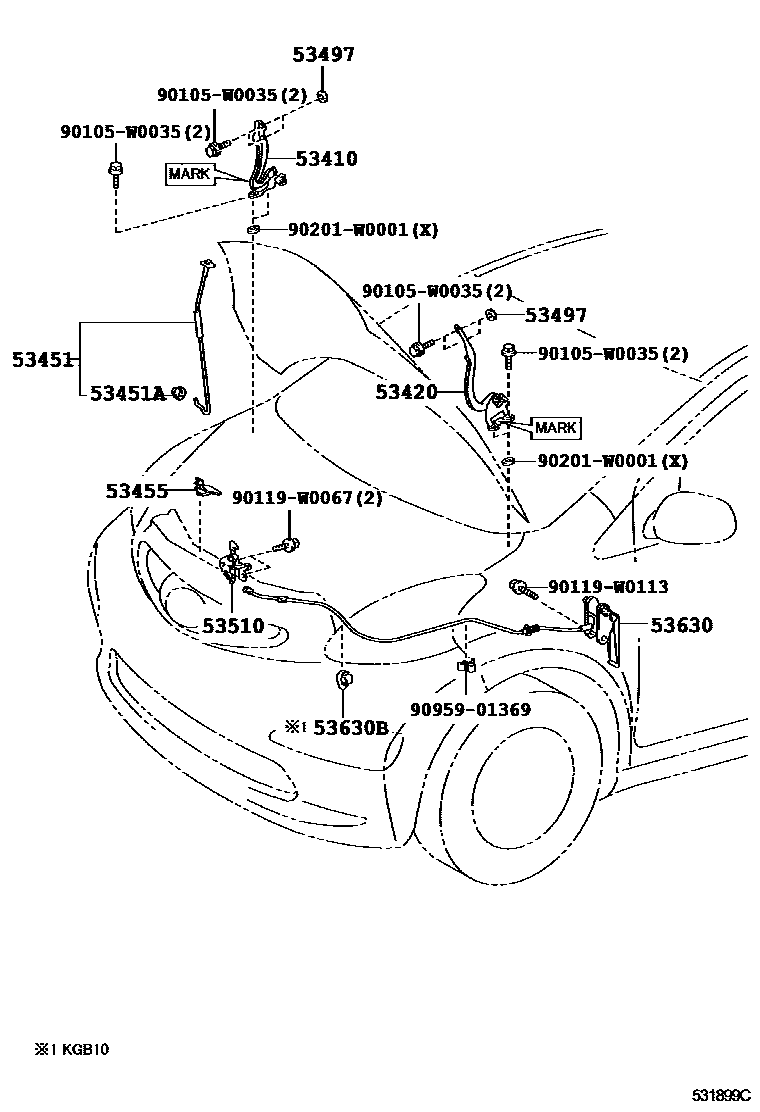

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0H010iKGB10,WNB10200502-201202

MARK = TR

main53410-0H040iKGB10201202-201406

MARK = UR

main53410-0H050iKGB10201202-201406

MARK = LR

53420HINGE ASSY, HOOD, LH

main53420-0H010iKGB10,WNB10200502-201202

MARK = TL

main53420-0H040iKGB10201202-201406

MARK = UL

main53420-0H050iKGB10201202-201406

MARK = LL

53451ROD, HOOD SUPPORT

main53440-0H010iWNB10200502-201202

main53440-0H020iKGB10201202

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iKGB10,WNB10200502-201202

53455CLAMP, HOOD SUPPORT ROD

main53455-0H020iKGB10201202

main53455-70010iWNB10200502-201202

53497PAD, HOOD HINGE, NO.1

main53497-70010iKGB10,WNB10200502-201202

T=1.0

53510LOCK ASSY, HOOD

main53510-0H010iKGB10201202

main53510-0H050iWNB10200502-201202

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0H010iKGB10,WNB10200502-201202

sub53630-0H050

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iKGB10200502-201202

90105W0035

main90105-W0035

90119W0067

main90119-W0067

90119W0113

main90119-W0113

90201W0001

main90201-W0001

9095901369

main90959-01369

14 parts on this diagram · 1 diagram in section
