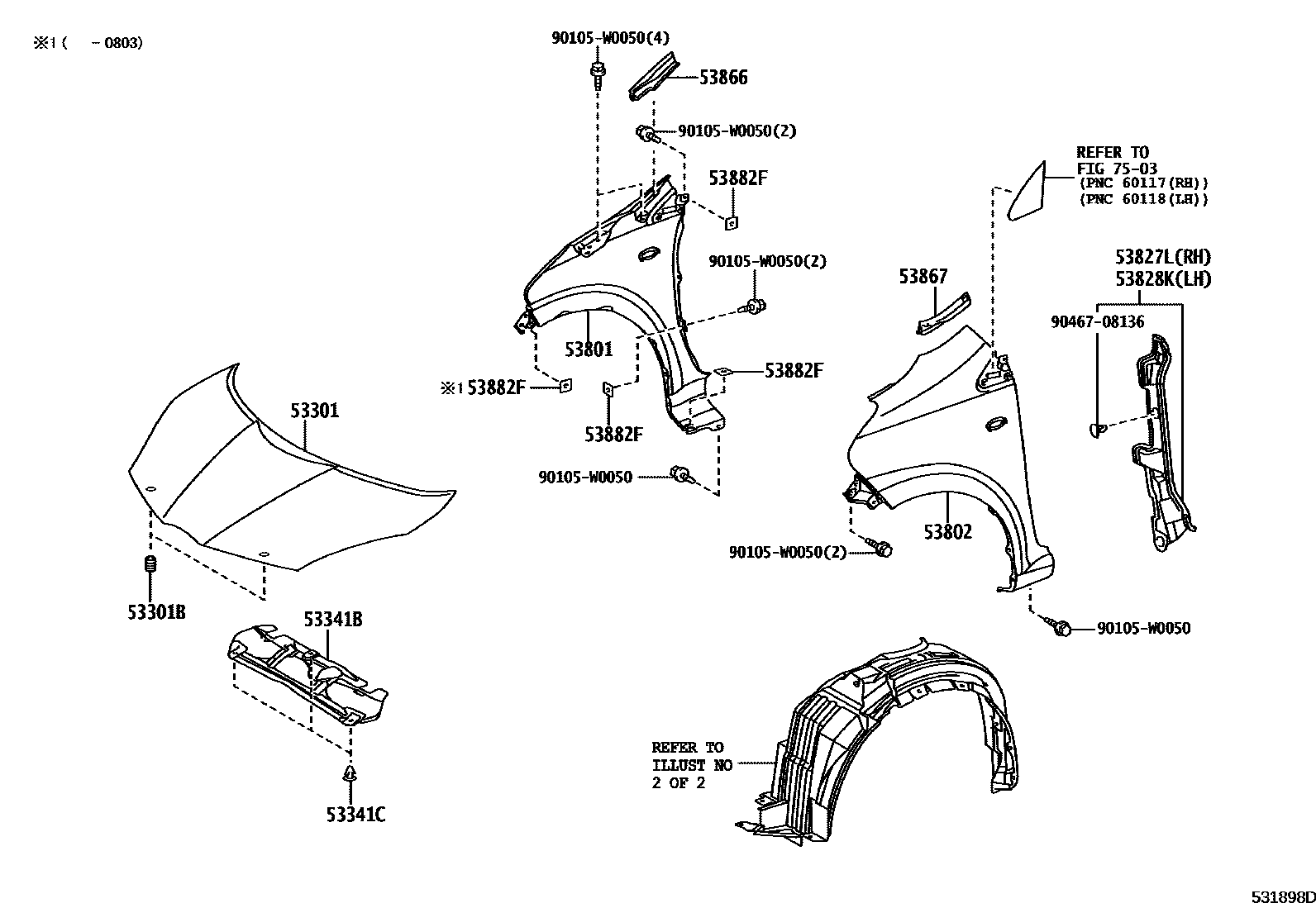

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0H010iKGB10,WNB10¥28,600200502-201202

main53301-0H040iKGB10201202-201406

53301BCUSHION, HOOD BUMPER

main90541-15019iKGB10,WNB10¥200200502-201202

main90541-15037iKGB10¥200201202

53341BINSULATOR, HOOD

main53341-0H010iKGB10,WNB10..LV1200502-201202

NV PACKAGE

main53341-0H010iWNB10200812-201009

main53341-0H020iKGB10201202

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iKGB10..LEDIN¥120200502-201202

NV PACKAGE

main90467-09050iWNB10¥120200812-201406

53801FENDER SUB-ASSY, FRONT RH

main53811-0H010iKGB10,WNB10200502-201406

53802FENDER SUB-ASSY, FRONT LH

main53812-0H010iKGB10,WNB10200502-201406

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0H010iKGB10,WNB10200502-201202

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0H010iKGB10200502-201202

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0H010iWNB10200502-201202

main53866-0H030iKGB10201202

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0H010iKGB10,WNB10200502-201202

main53867-0H030iKGB10201202

53882FSEAL, FRONT FENDER

main53882-16030iKGB10,WNB10¥60200502-201202

7503

90105W0050

main90105-W0050

9046708136

main90467-08136¥90

14 parts on this diagram · 2 diagrams in section
