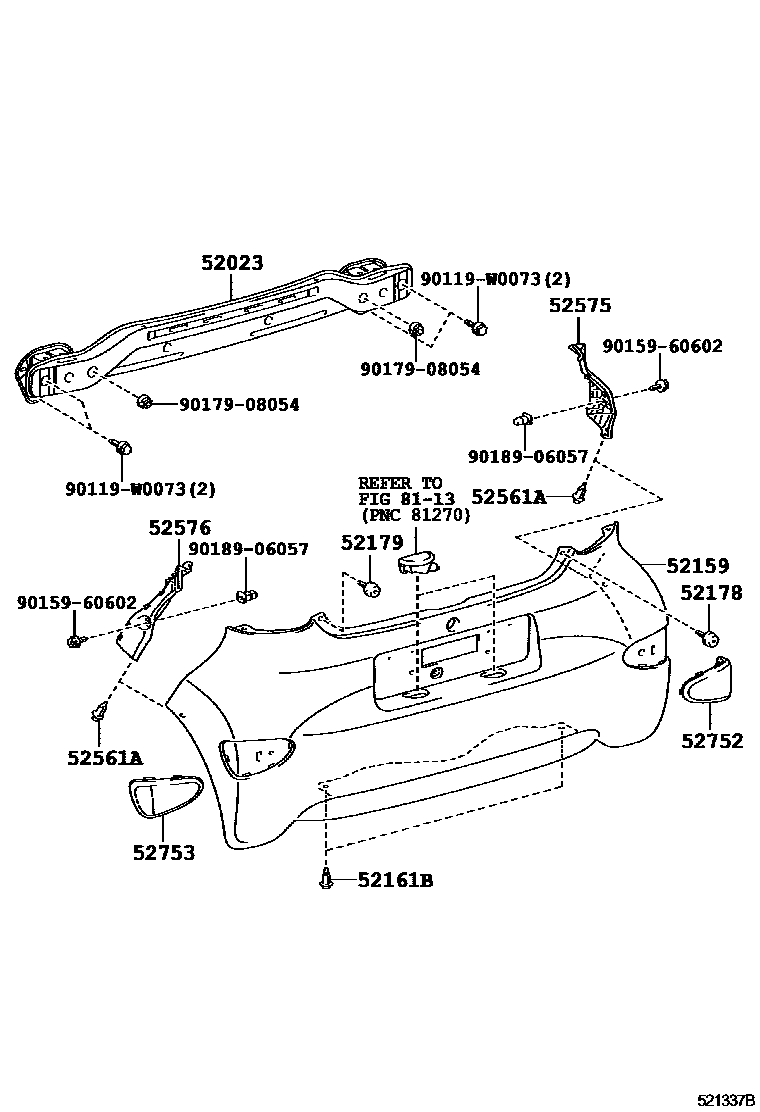

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0H010iKGB10,WNB10¥18,700200502-201405

52159COVER, REAR BUMPER

main52159-0H901iKGB10,WNB10¥33,500200502-201406

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iKGB10,WNB10¥120200502-201202

sub52161-0K040¥120

52178CUSHION, REAR BUMPER, RH

main52188-70010iKGB10,WNB10¥550200502-201202

52179CUSHION, REAR BUMPER, LH

main52188-70010iKGB10,WNB10¥550200502-201202

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05063-C0iKGB10,WNB10200502-201405

BLACK

sub90467-05063¥70

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0H010iKGB10,WNB10¥2,350200502-201202

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0H010iKGB10,WNB10¥2,350200502-201202

52752MOULDING, REAR BUMPER SIDE, RH

main52752-0H901iKGB10,WNB10¥3,290200502-201202

52753MOULDING, REAR BUMPER SIDE, LH

main52753-0H901iKGB10,WNB10¥3,290200502-201202

8113

90119W0073

main90119-W0073¥130

9015960602

main90159-60602¥60

9017908054

main90179-08054¥100

9018906057

main90189-06057¥110

15 parts on this diagram · 1 diagram in section
