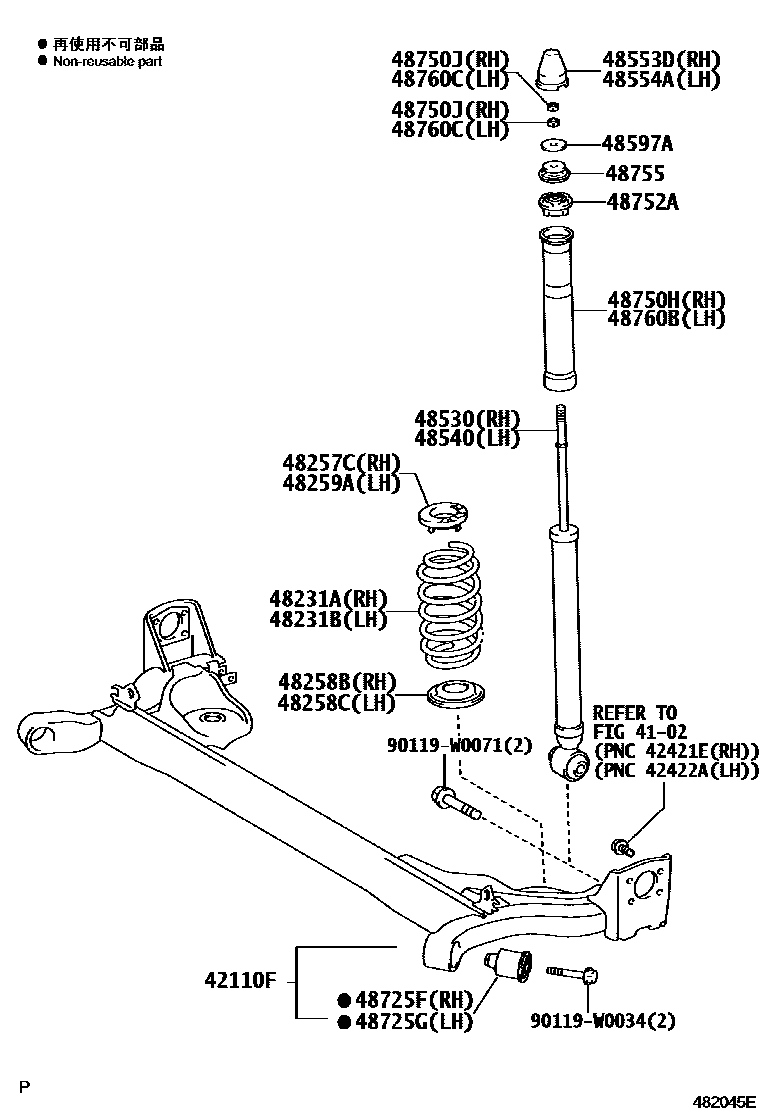

REAR SPRING & SHOCK ABSORBER
4102
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
N1 PACKAGE,GREEN PAINTED
N1 PACKAGE,SILVER PAINTED
48231BSPRING, COIL, REAR LH
N1 PACKAGE,SILVER PAINTED
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-0H010
MARK 48530-0H030
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-0H010
MARK 48530-0H030
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90119W0034
main90119-W0034
90119W0071
main90119-W0071
23 parts on this diagram · 1 diagram in section
