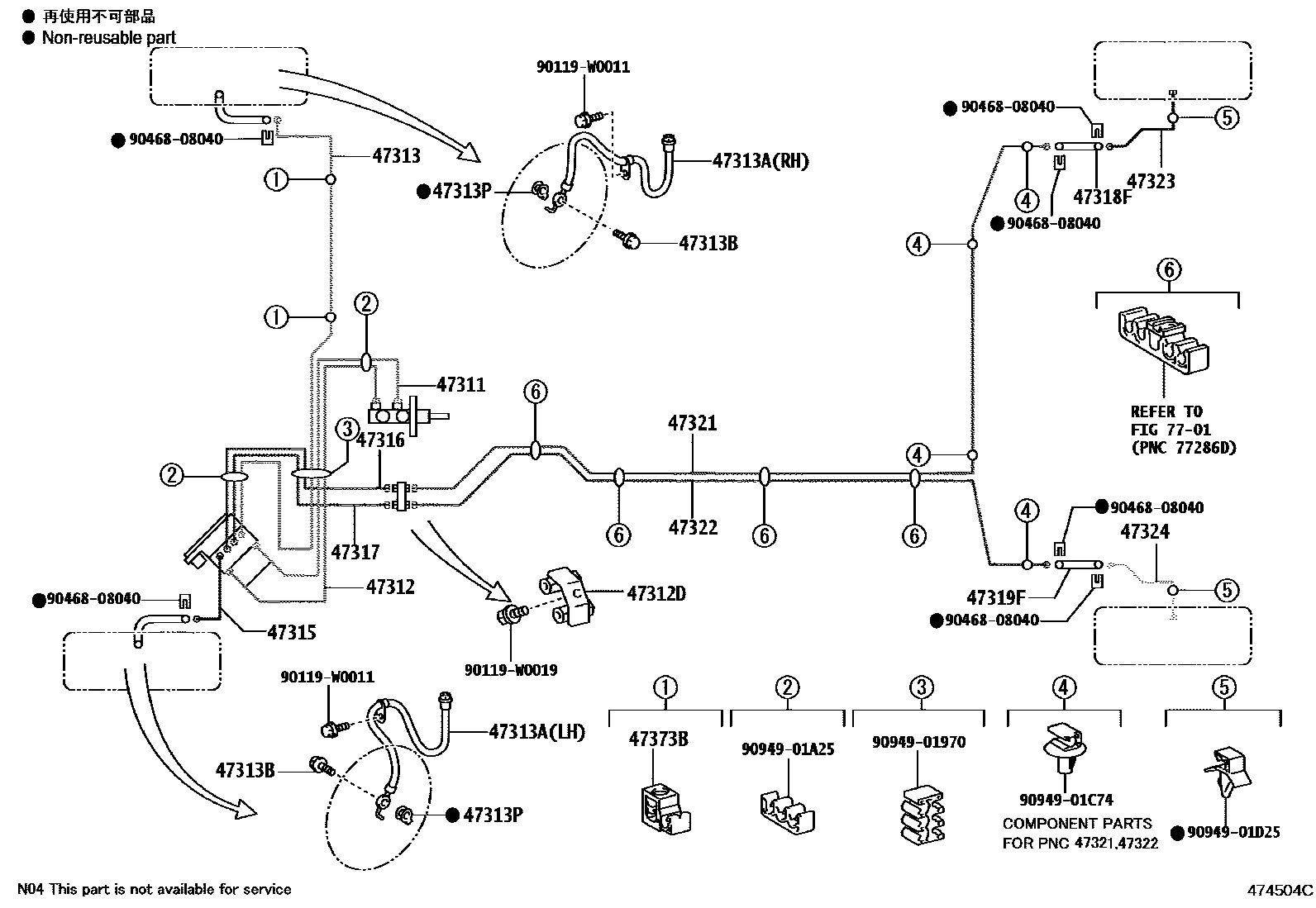

BRAKE TUBE & CLAMP

0001 1 0002 1W(VSC) 0003 1 0004 1W(VSC) 0005 1 0006 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-0H010iKGB10,WNB10..LHD200502-201202

main47311-0H020iKGB10,WNB10..RHD200502-201202

main47311-0H040iKGB10..RHD201307

main47311-0H050iKGB10..LHD201202-201307

main47311-0H060iKGB10..RHD201202-201307

main47311-0H070iKGB10..LHD201307

47312TUBE, FRONT BRAKE, NO.2

main47312-0H010iKGB10,WNB10..LHD200502-201202

main47312-0H020iKGB10..RHD200502-201202

main47312-0H040iKGB10..RHD201307

main47312-0H050iKGB10..LHD201202-201307

main47312-0H060iKGB10..RHD201202-201307

main47312-0H070iKGB10..LHD201307

47312DWAY, 2(FOR REAR BRAKE TUBE)

main90412-10255iWNB10200502-201202

47313TUBE, FRONT BRAKE, NO.3

main47313-0H010iKGB10,WNB10..LHD200502-201202

main47313-0H020iKGB10..RHD200502-201202

main47313-0H030iKGB10..LHD201307

main47313-0H040iKGB10..RHD201307

main47313-0H050iKGB10..LHD201202-201307

main47313-0H060iKGB10..RHD201202-201307

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2002iWNB10200502-201202

RH

main90947-W2003iKGB10200502-201202

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iWNB10200502-201202

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iKGB10,WNB10200502-201202

47315TUBE, FRONT BRAKE, NO.5

main47315-0H010iKGB10200502-201202

main47315-0H020iKGB10201307

main47315-0H030iKGB10201202-201307

47316TUBE, FRONT BRAKE, NO.6

main47316-0H010iKGB10,WNB10200502-201202

main47316-0H020iKGB10201307

main47316-0H030iKGB10201202-201307

47317TUBE, FRONT BRAKE, NO.7

main47317-0H010iKGB10,WNB10200502-201202

main47317-0H020iKGB10201307

main47317-0H030iKGB10201202-201307

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2004iKGB10,WNB10200502-200608

sub90947-W2021

main90947-W2021iKGB10,WNB10200609-201202

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2004iKGB10,WNB10200502-200608

sub90947-W2021

main90947-W2021iWNB10200609-201202

47321TUBE, REAR BRAKE, NO.1

main47321-0H010iKGB10,WNB10200502-201406

47322TUBE, REAR BRAKE, NO.2

main47322-0H010iKGB10,WNB10200502-201406

47323TUBE, REAR BRAKE, NO.3

main47323-0H010iKGB10,WNB10200502-201202

47324TUBE, REAR BRAKE, NO.4

main47324-0H010iWNB10200502-201202

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01B45iKGB10,WNB10..LHD200502-201202

main90949-01D02iKGB10..RHD200502-201307

main90949-01D23iKGB10..RHD201307

7701

90119W0011

main90119-W0011

90119W0019

main90119-W0019

9046808040

main90468-08040

9094901970

main90949-01970

9094901A25

main90949-01A25

9094901C74

main90949-01C74

9094901D25

main90949-01D25
