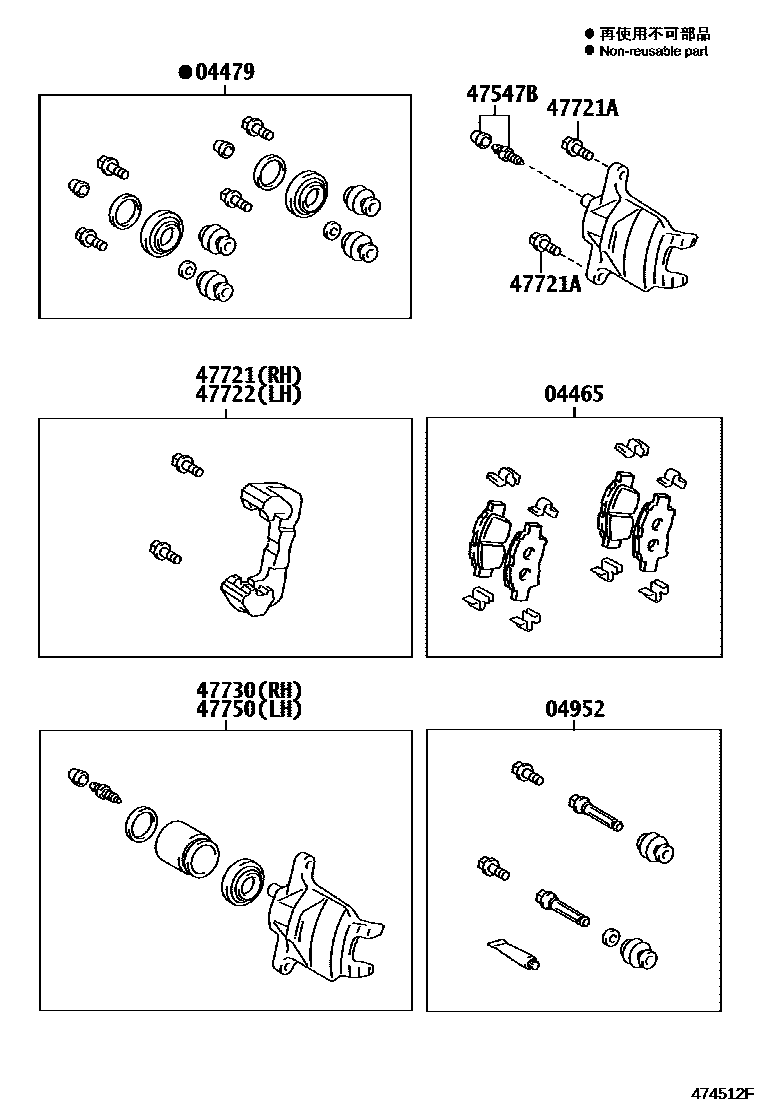

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0H020iKGB10,WNB10200502-201202

MARK JURID 682

sub04465-0H030

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0H020iKGB10,WNB10200502-201202

sub04478-0H021

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-0H040iKGB10,WNB10200502-201202

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-09040iKGB10,WNB10200502-201202

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09210iKGB10,WNB10200502-201202

sub47721-09211

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-W0121iKGB10,WNB10200502-201405

*12-1.25PX29.5-23

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09070iKGB10,WNB10200502-201202

sub47722-09071

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0H010iKGB10,WNB10200502-201202

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0H010iKGB10,WNB10200502-201202

9 parts on this diagram · 1 diagram in section
