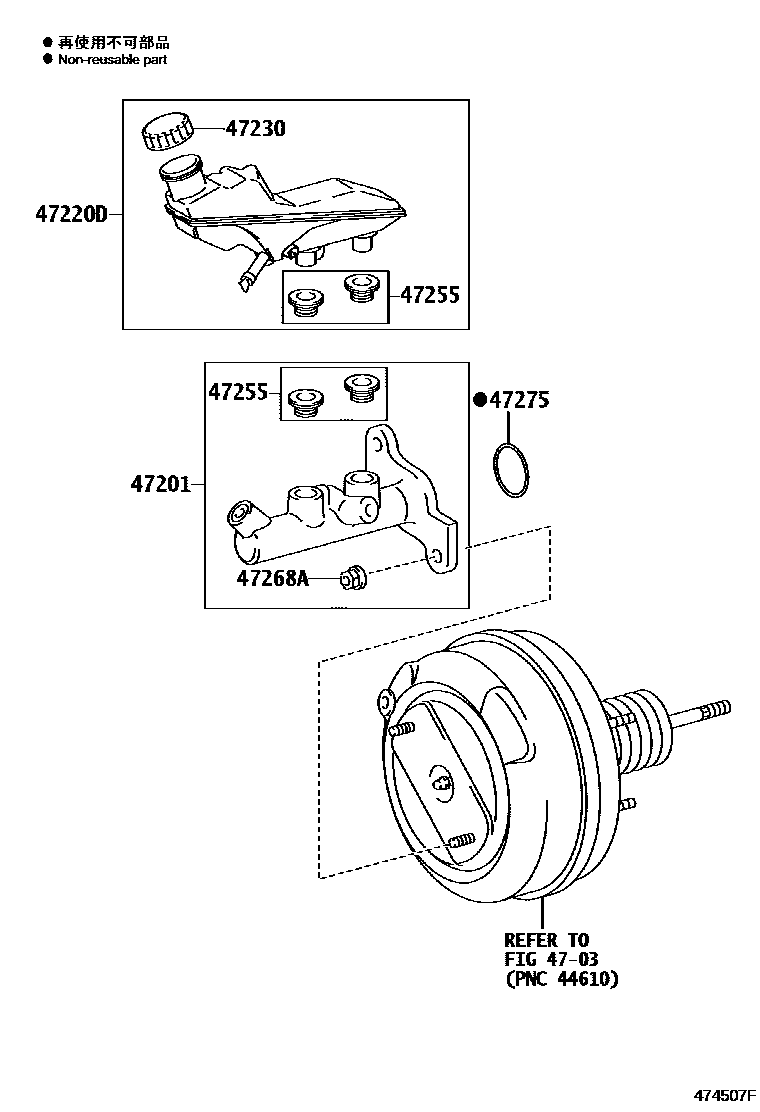

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47025-09010iKGB10..LHD200502-201307

main47025-09020iKGB10..RHD200502-201307

main47025-09030iKGB10..LHD201307

main47025-09040iKGB10..RHD201307

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47221-09010iKGB10,WNB10..LHD200502-201202

main47221-09020iKGB10..RHD200502-201202

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iKGB10,WNB10200712-201202

main47230-0H010iKGB10,WNB10200502-200711

sub47230-0D010

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iKGB10200502-201202

47268ANUT, BRAKE MASTER CYLINDER

main47268-0D010iKGB10,WNB10200502-201202

47275GASKET, BRAKE MASTER CYLINDER

main47275-0H010iKGB10,WNB10200502-201202

7 parts on this diagram · 1 diagram in section
