PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0H010-B0iKGB10,WNB10200502-201405

DARK GREY,TRIM1#

main46201-0H010-B0iKGB10200812-201202

DARK GREY,TRIM1#,2#

46341EQUALIZER, PARKING BRAKE

main46341-0H010iKGB10,WNB10200502-201202

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0H010iKGB10,WNB10200502-201202

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0H010iKGB10,WNB10200502-201202

46441ANUT, WIRE ADJUSTING, NO.2

main46441-0H010iKGB10,WNB10200502-201202

90119W0061

main90119-W0061

90178W0019

main90178-W0019

9167180614

main91671-80614

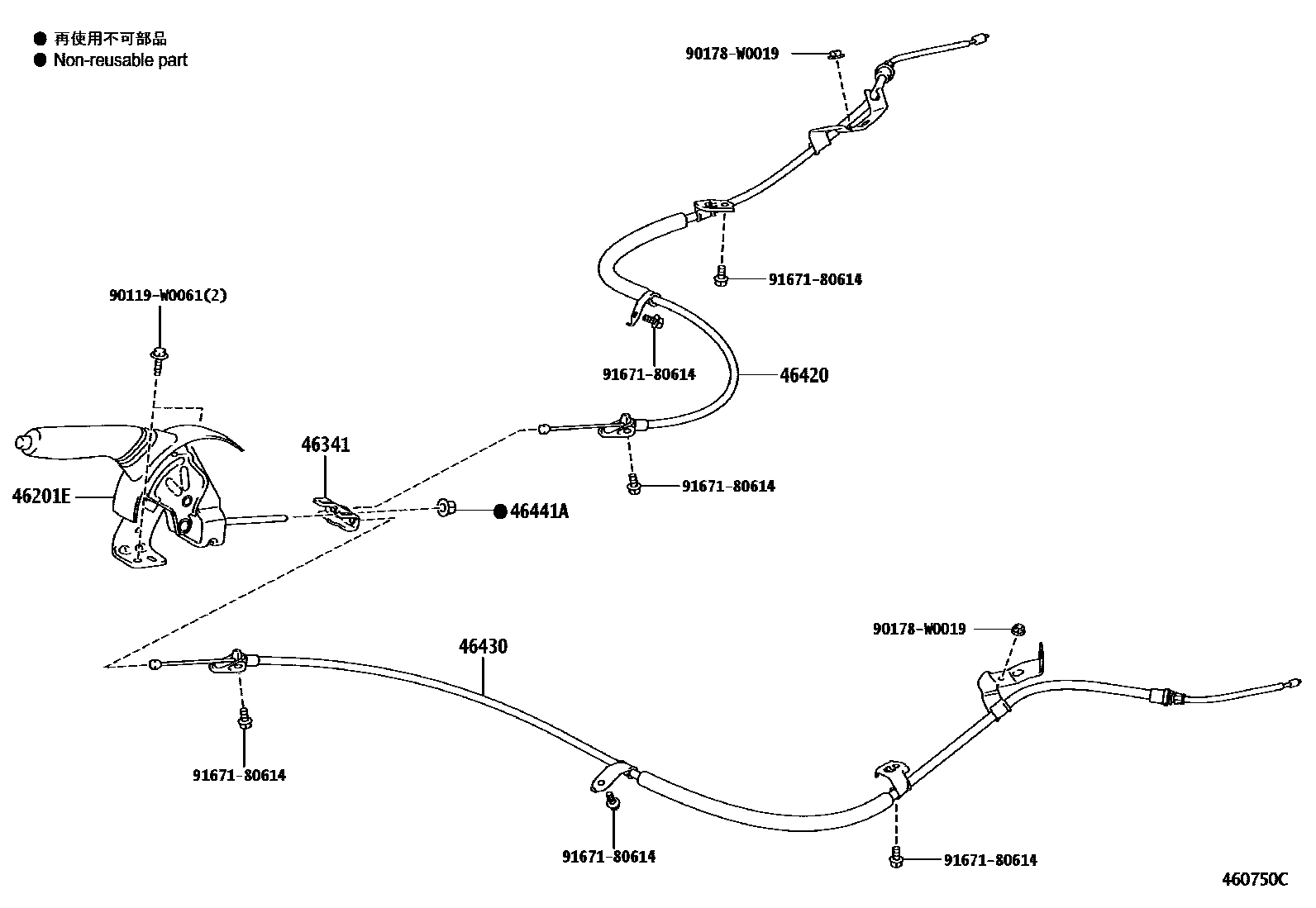

8 parts on this diagram · 1 diagram in section
