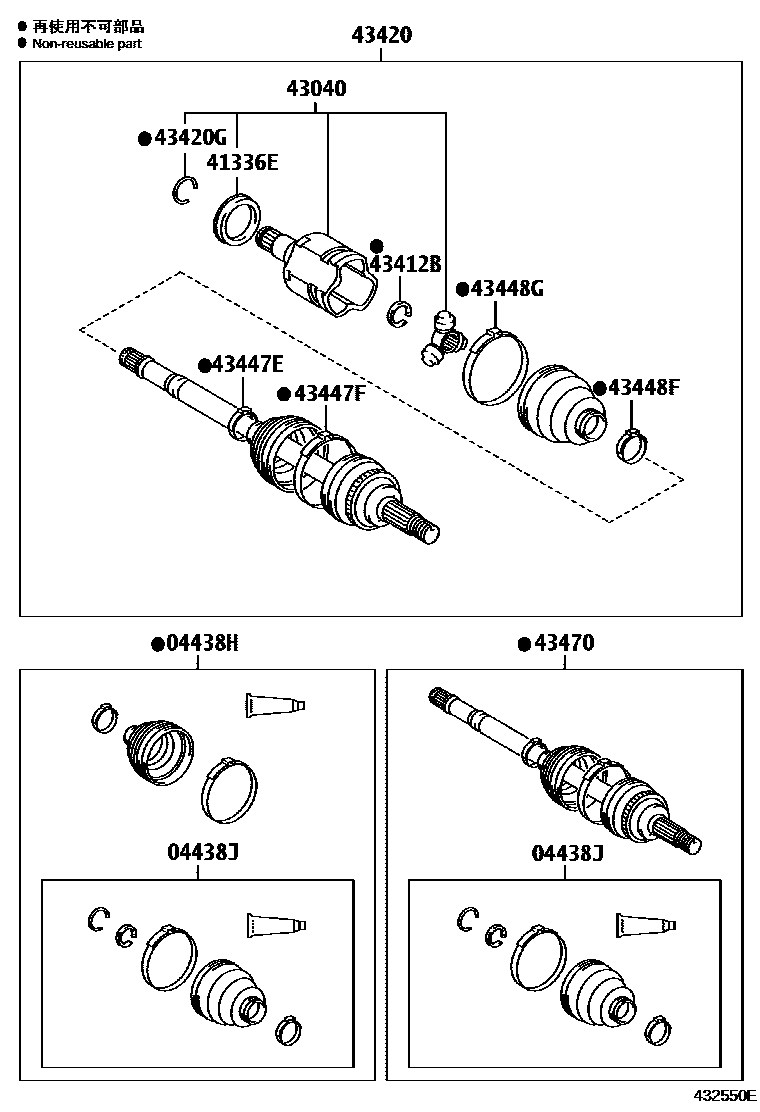

FRONT DRIVE SHAFT

0001 1LH 0002 1RH 0003 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-0H010iKGB10200502-201202

main04428-0H030iWNB10200505-201009

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-0H011iKGB10,WNB10200502-201202

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-0H010iKGB10,WNB10200502-201202

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43403-0H010iKGB10,WNB10200502-201304

main43403-0H020iKGB10201304

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-0H010iKGB10,WNB10200502-201202

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-0H010iKGB10200502-201304

main43420-0H020iWNB10200505-201009

main43420-0H050iKGB10201304

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-0H040iKGB10200502-201202

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0H040iKGB10200502-201202

main42345-0H060iWNB10200505-201009

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0H030iKGB10200502-201202

main42345-0H050iWNB10200505-201009

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0H020iKGB10200502-201202

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0H010iKGB10,WNB10200502-201202

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-09C90iKGB10200502-201304

main43470-09D00iWNB10200505-201009

main43470-8Z224iKGB10201304

12 parts on this diagram · 3 diagrams in section
