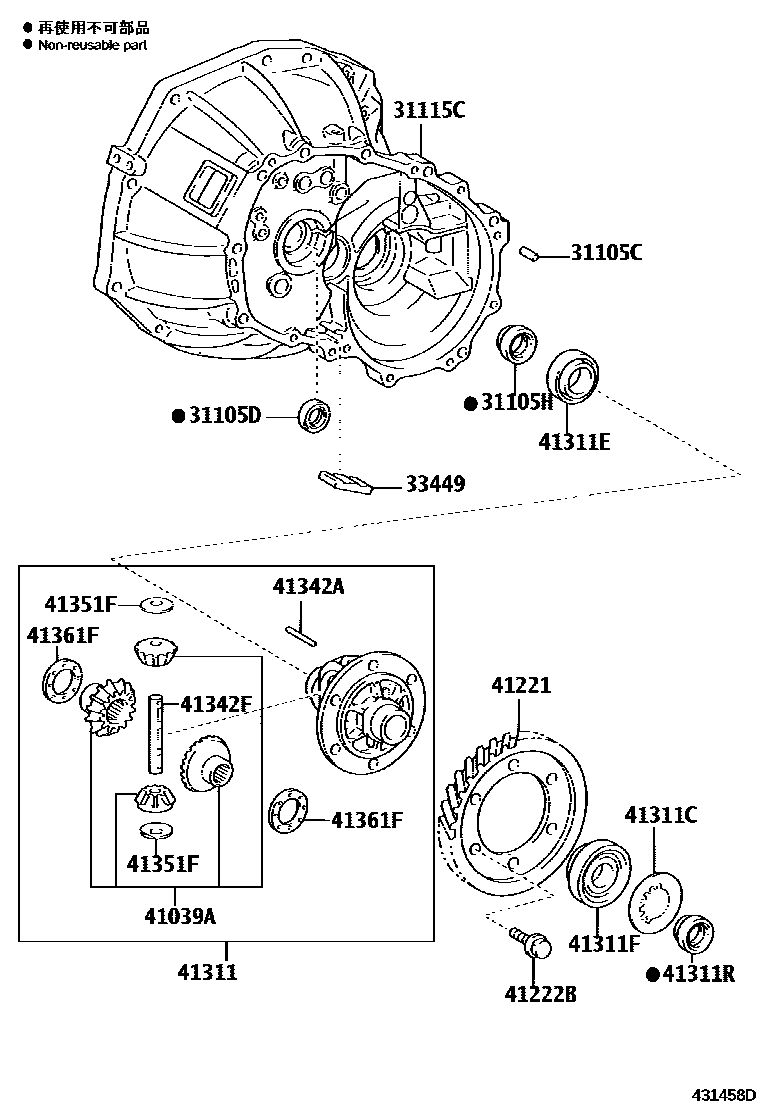

FRONT AXLE HOUSING & DIFFERENTIAL
31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)
sub90250-08054
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
33449MAGNET, TRANSMISSION
41039AGEAR KIT, DIFFERENTIAL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.10,MARK 01
T=1.15,MARK 02
T=1.20,MARK 03
T=1.25,MARK 04
T=1.30,MARK 05
T=1.35,MARK 06
T=1.40,MARK 07
T=1.45,MARK 08
T=1.50,MARK 09
T=1.55,MARK 10
T=1.60,MARK 11
T=1.65,MARK 12
T=1.70,MARK 13
T=1.75,MARK 14
T=1.80,MARK 15
T=1.85,MARK 16
T=1.90,MARK 17
T=1.95,MARK 18
T=2.00,MARK 19
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.50
T=0.55
T=0.60
T=0.65
T=0.70
T=0.75
T=0.80
T=0.85
T=0.90
T=0.95
17 parts on this diagram · 1 diagram in section
