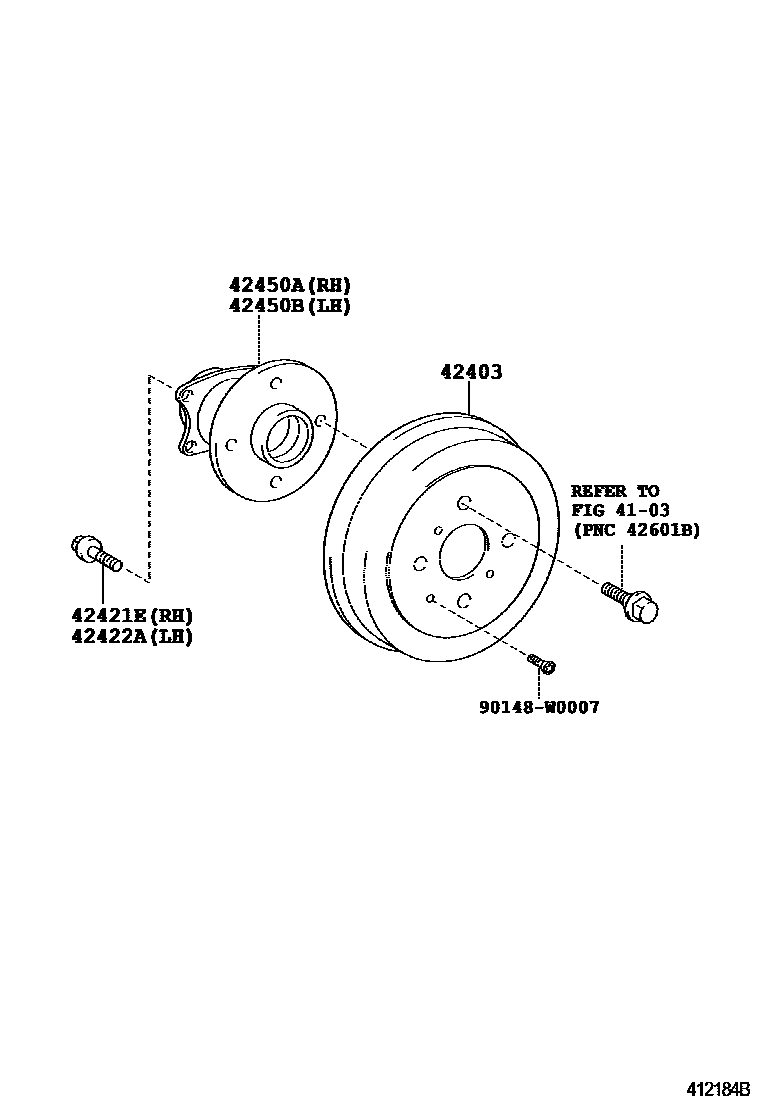

REAR AXLE SHAFT & HUB

4103

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0H010iKGB10,WNB10200502-201202

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-W0002iKGB10,WNB10200502-201202

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-W0002iKGB10,WNB10200502-201202

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0H010iKGB10,WNB10¥19,900200502-201202

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0H010iKGB10,WNB10¥19,900200502-201202

90148W0007

main90148-W0007

7 parts on this diagram · 1 diagram in section
