SHIFT LEVER & RETAINER

0001 1 0002 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-05010-B4iKGB10,WNB10..5F200502-200812

DARK GREY,TRIM1#

sub33504-12180

main33504-05030-B1supersedes 33504-22170-B4iKGB10..5FS201202-201405

DARK GREY,TRIM1#

main33504-22170-B4iKGB10..5FS200505-200812

DARK GREY,TRIM1#

main33504-0H010-B0iKGB10,WNB10..5F..LV1200812-201202

STEERING WHEEL-3-SPOKE, LEATHER,DARK GREY,TRIM1#,2#

main33504-0H030-B0supersedes 33504-0H020-B0iKGB10..5F201202-201405

STEERING WHEEL-TOYOTA, 3-SPOKE, LEATHER,DARK GREY,TRIM1#

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-0H010iWNB10200502-200812

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0H010iKGB10,WNB10..5F200502-200812

main33530-0H020iKGB10..5F201202

sub33530-0H030

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0H010iKGB10..5F200502-200812

sub33820-0H011

main33820-0H020iWNB10200505-200812

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-W0019×3iKGB10..5F200812-201202

9011908373

main90119-08373

90119W0003

main90119-W0003

9046814016

main90468-14016

9046814029

main90468-14029

9046814039

main90468-14039

91651G0825

main91651-G0825

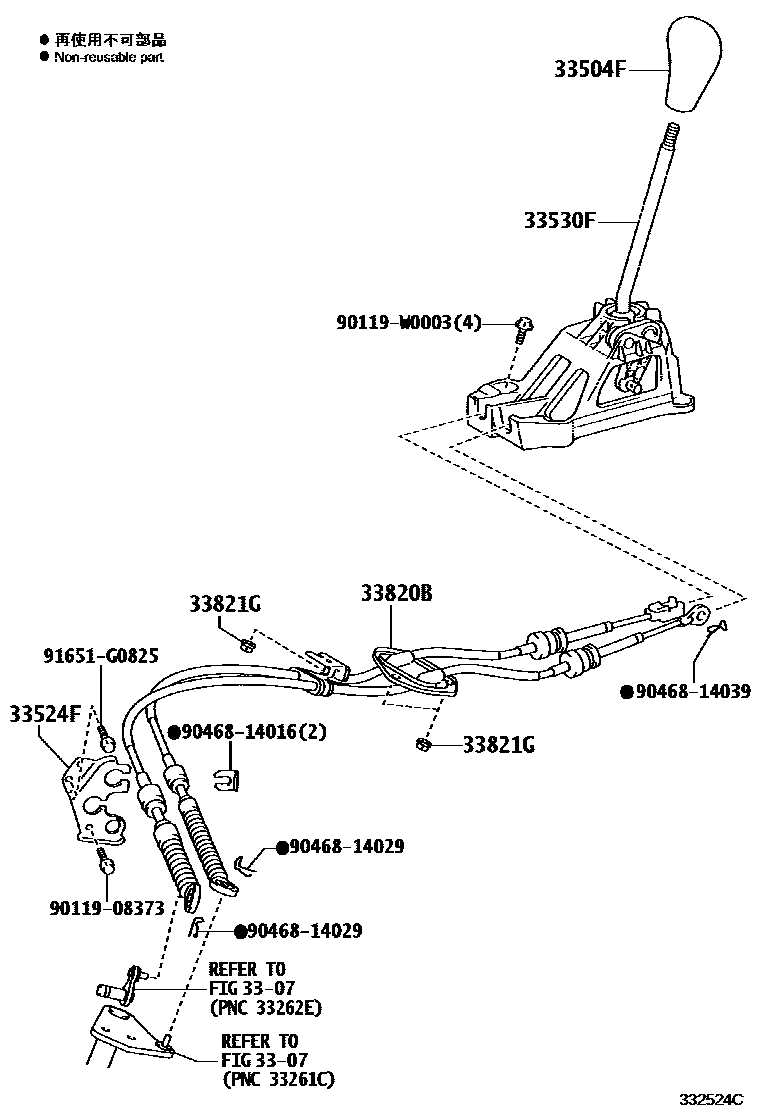

12 parts on this diagram · 2 diagrams in section
