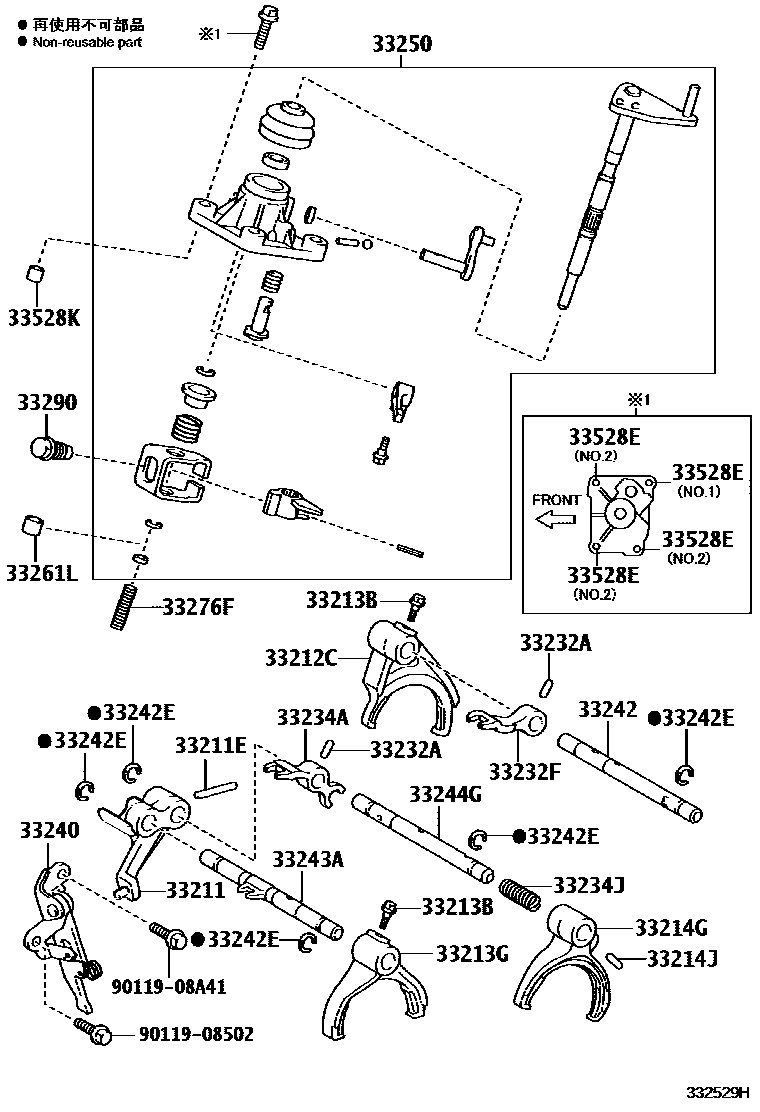

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33211EPIN, STRAIGHT(FOR REVERSE SHIFT FORK)
33212CFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33214JPIN, STRAIGHT(FOR 5TH SHIFT FORK)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33234AHEAD, GEAR SHIFT, NO.3
33234JSPRING, COMPRESSION (FOR SHIFT RETURN)
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33244GSHAFT, GEAR SHIFT FORK, NO.3
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33290BALL ASSY, LOCK, NO.1
33528EBOLT (FOR CONTROL SHAFT COVER)
*8-1.25X35-30,NO.1 & NO.2
*8-1.25X35-30,NO.1
*8-1.25X35-30,NO.2
*8-1.25PX35-30,NO.2
33528KPIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
9011908502
9011908A41
24 parts on this diagram · 2 diagrams in section
