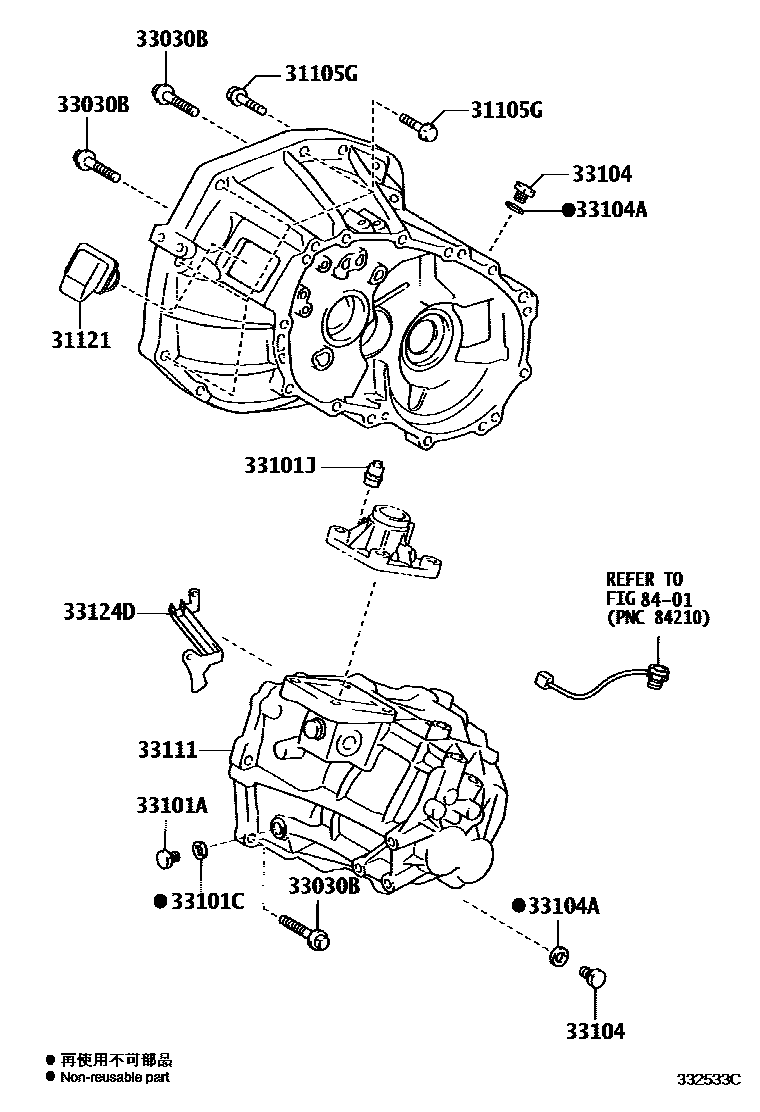

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C551,C552 0002 1C551A

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-W0096iWNB10200505-201009

*10-1.5PX65-28

main90119-W0097iKGB10¥160200502-201202

*12-1.25PX45-30

31121COVER, CLUTCH HOUSING, NO.1

main31121-0H010iKGB10,WNB10200502-200511

sub31121-0H011

main31121-0H011iKGB10200511-201406

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08261iKGB10¥100200502-201406

*8-1.25PX60-30

main90105-08333iWNB10¥130200502-201406

*8-1.25PX35-30

sub91551-C0835¥80

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iKGB10¥190200502-201406

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-W0001iKGB10200502-201406

33101JPLUG, BREATHER

main90930-03114iWNB10¥350200502-201202

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKGB10,WNB10¥180200502-201406

33104AGASKET, DRAIN PLUG(MTM)

main90430-W0001iKGB10200502-201406

33111CASE, MANUAL TRANSMISSION

main33111-0H010iKGB10..5F200502-201406

sub33111-0H011

main33111-0H020iKGB10..5FS200505-201406

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-0H010iKGB10200502-201406

8401

11 parts on this diagram · 2 diagrams in section
