TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

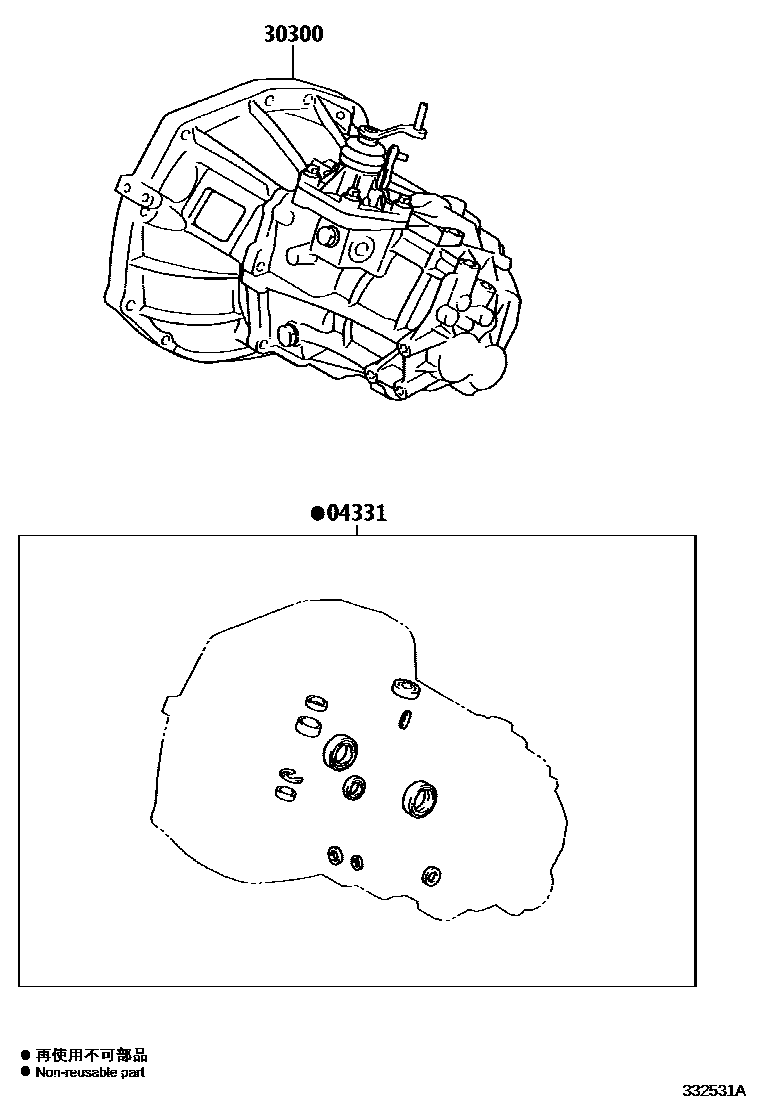

Parts diagram
04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL
main04331-0H011i200505-201110
sub04331-0H012
main04331-0H012i201110-201406
main04331-0H040i200502-201110
sub04331-0H041
main04331-0H041i201110-201406
30300TRANSAXLE ASSY, MANUAL
main30300-0H010i200502-200906
C551
sub30300-0H011
main30300-0H011i200906-201011
C551
sub30300-0H012
main30300-0H012i201006-201406
C551
main30300-0H020i200505-200906
C552
sub30300-0H021
main30300-0H021i200906-201009
C552
main30330-0H010i200505-201406
C551A

2 parts on this diagram · 2 diagrams in section
