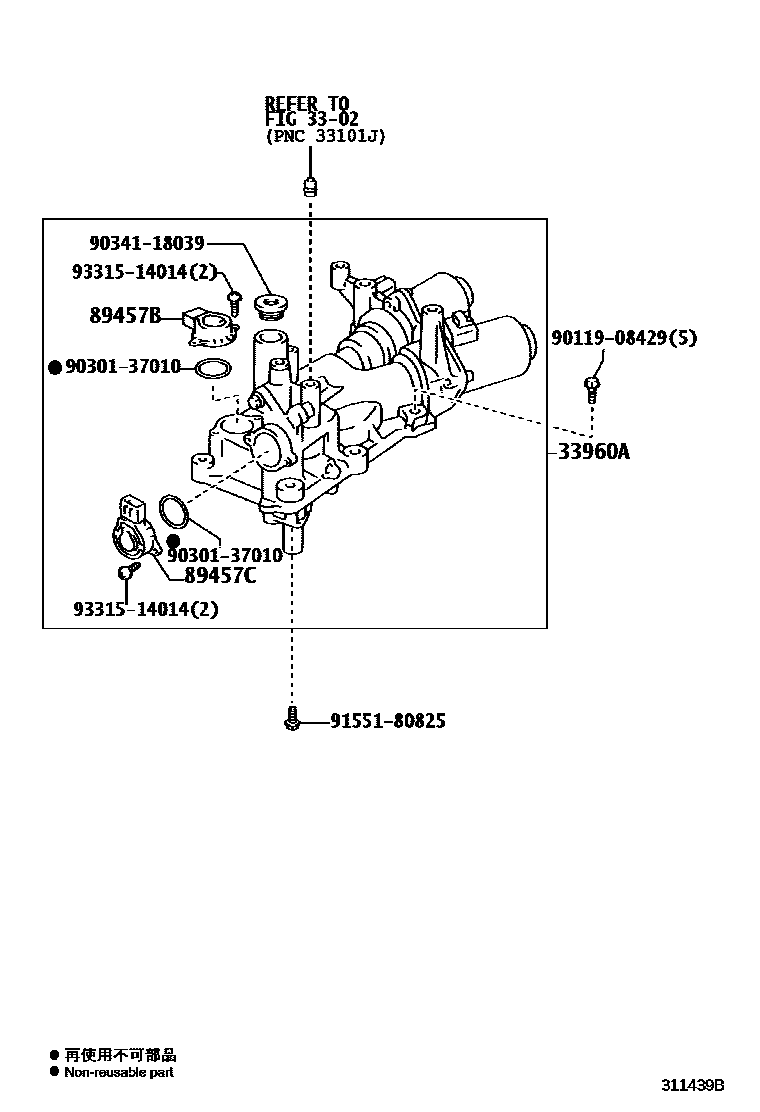

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

3302

33960AACTUATOR ASSY, SHIFT & SELECT

main33960-70010iKGB10..5FS200505-200506

sub33960-70011

main33960-70011iKGB10..5FS200506-201108

sub33960-70012

main33960-70012iKGB10..5FS201108-201210

sub33960-70013

main33960-70013iKGB10..5FS201210-201406

sub33960-70014

89457BSTROKE SENSOR, SHIFT

main89457-52010iKGB10..5FS200505-201010

main89457-52020iKGB10..5FS201010-201406

89457CSTROKE SENSOR, SELECT

main89457-52010iKGB10..5FS200505-201010

main89457-52020iKGB10..5FS201010-201406

9011908429

main90119-08429

9030137010

main90301-37010

9034118039

main90341-18039

9155180825

main91551-80825

9331514014

main93315-14014

9 parts on this diagram · 1 diagram in section
