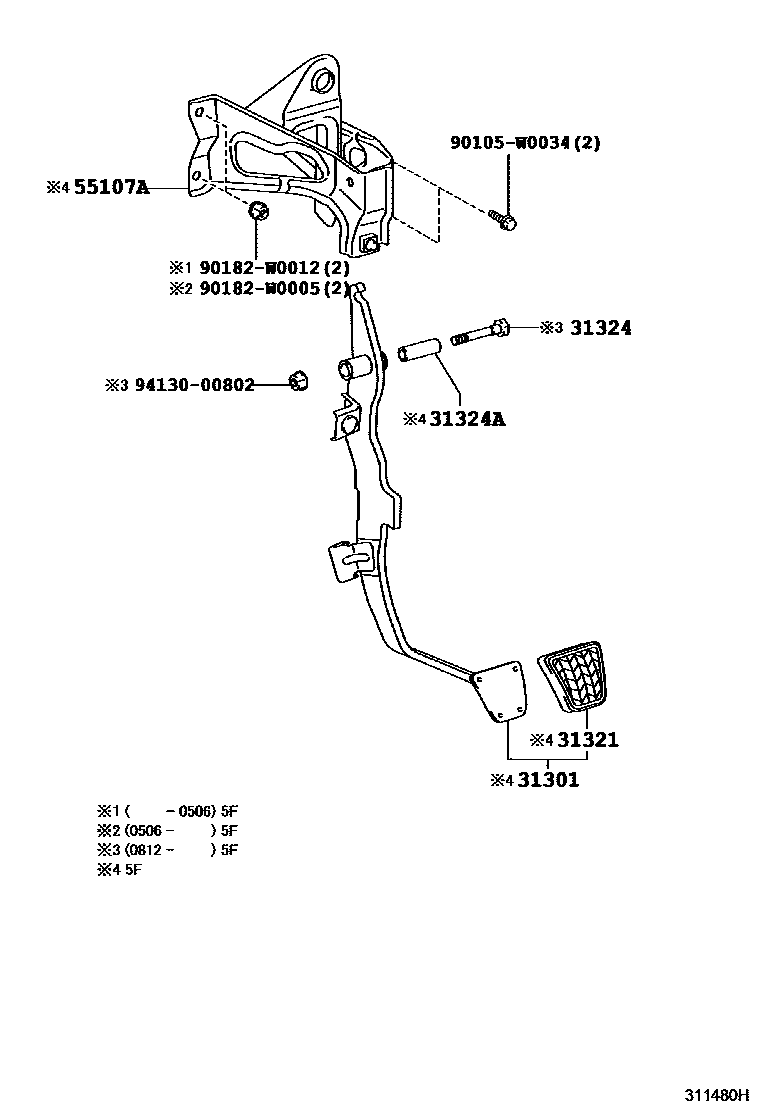

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0H020iKGB10,WNB10..LHD..5F200502-201009

main31301-0H040iKGB10,WNB10..RHD..5F200502-201009

main31301-0H050iKGB10..RHD..5F200812-201202

main31301-0H060iKGB10..LHD..5F200812-201202

31321PAD, CLUTCH PEDAL

main31321-0H010iKGB10,WNB10..5F200502-201202

31324SHAFT, CLUTCH PEDAL

main47124-0H020iKGB10..RHD..5F200812-201202

31324ACOLLAR, CLUTCH PEDAL SHAFT

main47144-0H020iKGB10..5F200502-201202

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0H010iWNB10..RHD200502-201009

main55107-0H020iKGB10..RHD..5F200812-201202

90105W0034

main90105-W0034

90182W0005

main90182-W0005

90182W0012

main90182-W0012

9413000802

main94130-00802

9 parts on this diagram · 3 diagrams in section
