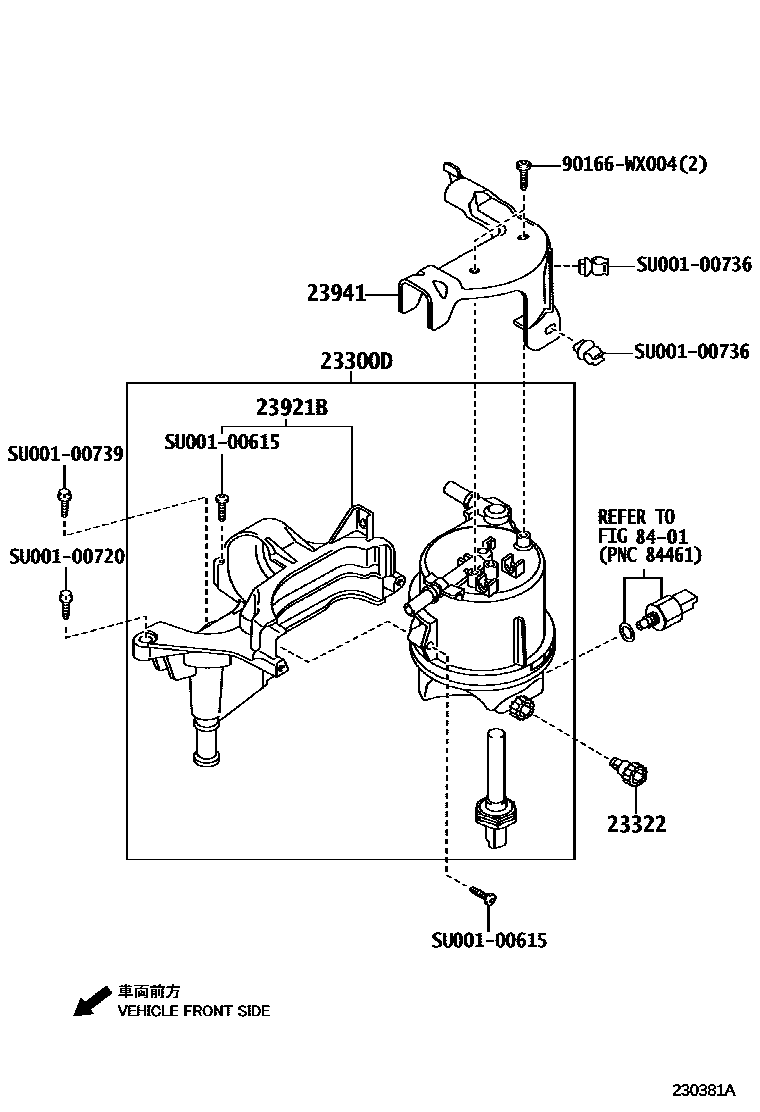

FUEL FILTER

0001 1 0002 1 0003 1

23300DFILTER ASSY, FUEL(FOR DIESEL)

mainSU00100696i2WZTV..WNB10200505-200506

mainSU00100775i2WZTV..WNB10200506-200508

mainSU00100794i2WZTV..WNB10200508-200601

mainSU00100892i2WZTV..WNB10200601-200812

23322PLUG, DRAIN(FOR FUEL FILTER)

mainSU00100697i2WZTV..WNB10200505-200812

23921BBRACKET(FOR FUEL FILTER)

mainSU00100699i2WZTV..WNB10200505-200812

23941PROTECTOR, FUEL FILTER, NO.1

main23941-YV011i2WZTV..WNB10200505-200812

8401

90166WX004

main90166-WX004

SU00100615

mainSU001-00615

SU00100720

mainSU001-00720

SU00100736

mainSU001-00736

SU00100739

mainSU001-00739

10 parts on this diagram · 3 diagrams in section
