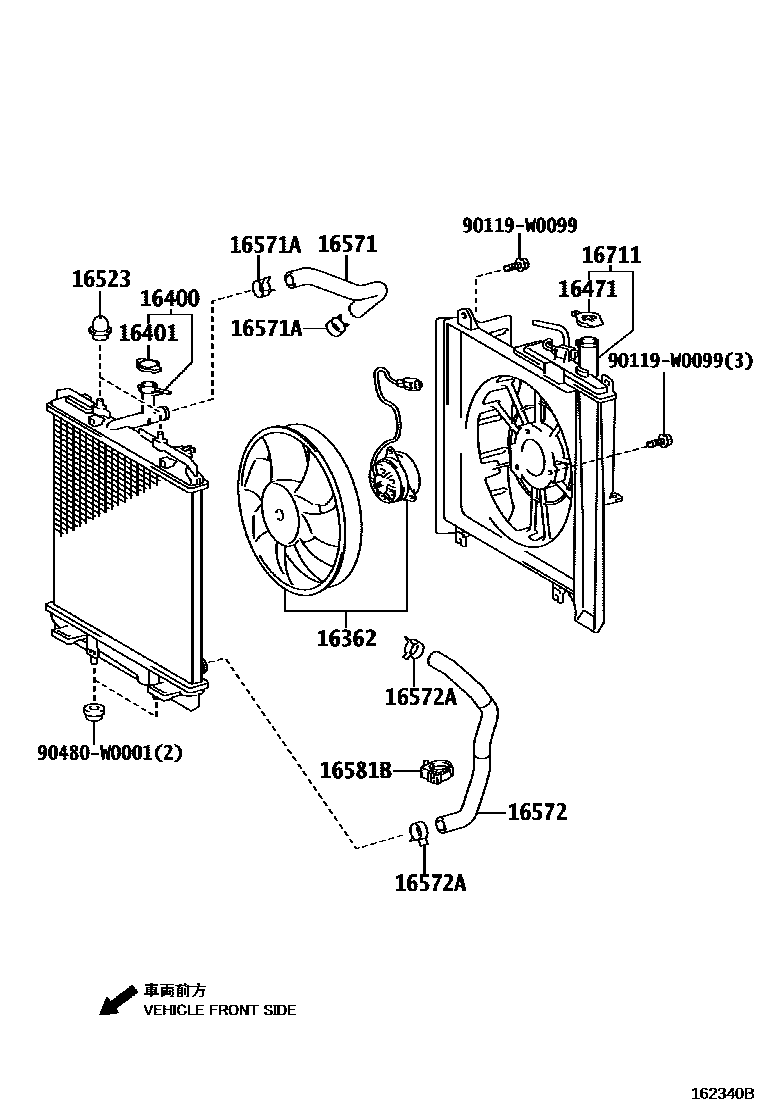

RADIATOR & WATER OUTLET

0001 1 0002 1TROPIC SPEC 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

16362FAN, NO.2

main16362-8EA01supersedes 16362-8EA00i1KRFE..KGB10200502-200812

FRONT AIR CONDITIONER-WITH

16400RADIATOR ASSY

main16400-0Q020supersedes 16400-0Q010i1KRFE..KGB10201202

FRONT AIR CONDITIONER-MANUAL

main16400-0Q070i1KRFE..KGB10..5F200812-201202

TROPIC SPEC

16401CAP SUB-ASSY, RADIATOR

main16401-31520i1KRFE..KGB10201308

sub16401-36020

main16401-62100i1KRFE..KGB10200812-201202

16471CAP SUB-ASSY, RESERVE TANK

main16471-0Q010i1KRFE..KGB10200502-200812

main16471-23030i1KRFE..KGB10..5F201202

TROPIC SPEC

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-0Q010×2i1KRFE..KGB10200502-200812

16571HOSE, RADIATOR, INLET

main16571-0Q010i1KRFE..KGB10200812-201202

main16571-YV010i2WZTV..WNB10200812-201009

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-W0015×2i1KRFE..KGB10200812-201202

16572HOSE, RADIATOR, OUTLET

main16572-0Q010i1KRFE..KGB10200502-200812

main16572-YV010i2WZTV..WNB10200812-201009

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-W0015×2i1KRFE..KGB10200502-200812

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-YV010i2WZTV..WNB10200505-200703

main16581-YV011i2WZTV..WNB10200703-200812

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main90469-35001i1KRFE..KGB10200502-200812

16711SHROUD, FAN

main16711-0Q010i1KRFE..KGB10200502-200812

sub16711-0Q011

main16711-0Q050i1KRFE..KGB10..5F200703-200812

TROPIC SPEC

main16711-8EA00supersedes 16711-8EA01i2WZTV..WNB10200812-201009

FRONT AIR CONDITIONER-WITH

90119W0099

main90119-W0099

90480W0001

main90480-W0001

14 parts on this diagram · 9 diagrams in section
