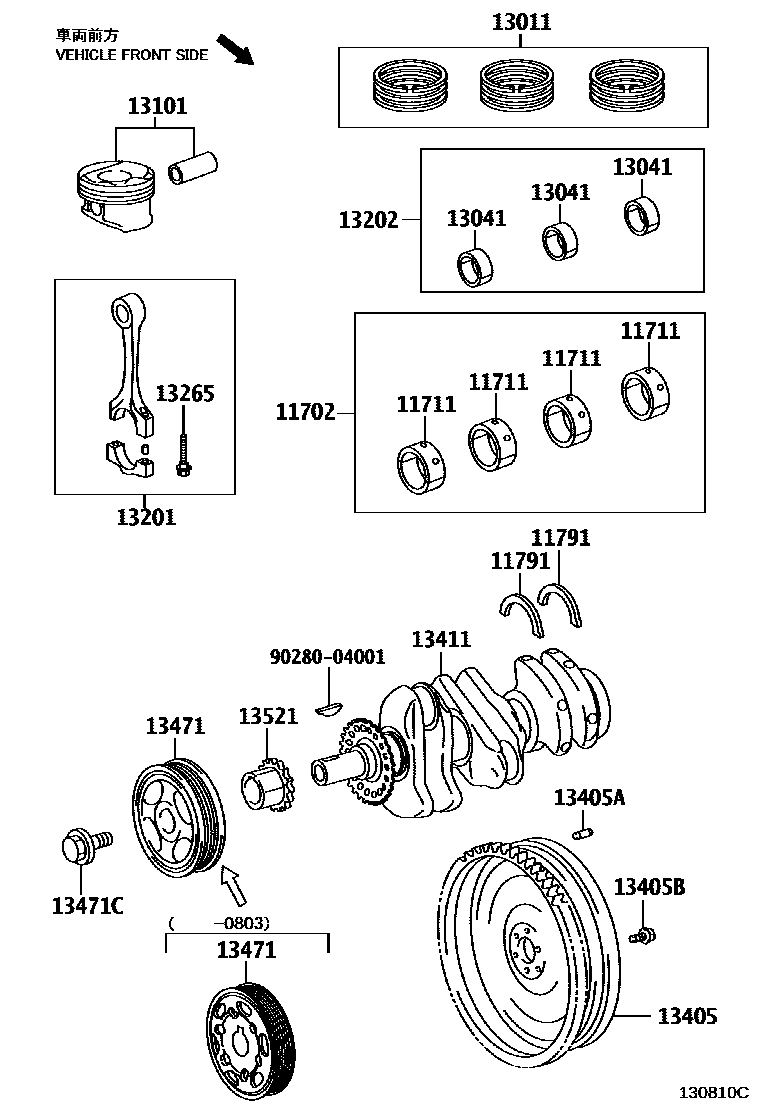

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
11711BEARING, CRANKSHAFT
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
NO.1
NO.2,BLUE PAINTED
NO.2 BLACK PAINTED
NO.2,GREEN PAINTED
11791WASHER, CRANKSHAFT THRUST, UPPER
13011RING SET, PISTON
STD,(L)
STD,MADE IN EUROPE
STD,MADE IN EUROPE
STD,(J)
STD,MADE IN JAPAN
STD
STD
STD
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
STD
STD
STD
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
STD
STD
13265BOLT, CONNECTING ROD
E/G NO.=TO 1456444
E/G NO.=FROM 1456445
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
9028004001
main90280-04001
17 parts on this diagram · 2 diagrams in section
