TIMING GEAR COVER & REAR END PLATE

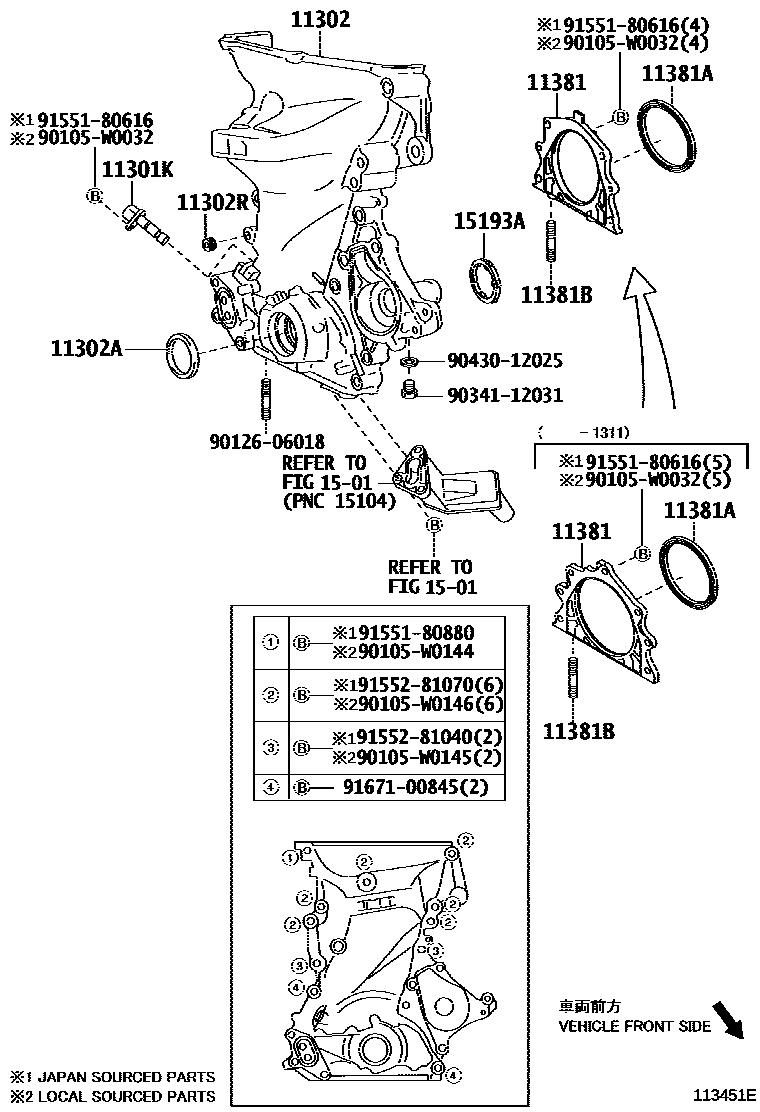

Parts diagram
11301KSENSOR, CRANK POSITION
main90919-05062i200502-201406
(J)
main90919-W5002i200502-201406
(L)
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
main11310-0Q010i200502-200508
sub11310-0Q020
main11310-0Q020i200508-201102
sub11310-0Q021
main11310-0Q021i201102-201307
sub11310-0Q022
main11310-0Q022i201307-201406
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
main90311-38091i200502-200601
sub90311-38092
main90311-38091i200601-200908
(J)
sub90311-38092
main90311-38092i200908-201406
(J)
main90311-W0008i200601-201003
(L)
sub90311-W0013
main90311-W0013i201003-201406
(L)
mainSU00100527i200505-200704
subSU001-00818
mainSU00100818i200705-201009
11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)
main90344-53006i200502-201406
11381RETAINER, ENGINE REAR OIL SEAL
main11381-0Q010i200502-201310
sub11381-0Q020
main11381-0Q020i201310-201406
11381ASEAL, ENGINE REAR OIL
main90080-31067i200502-201003
(L)
sub90311-W0014
main90311-73002i200502-200908
(J)
sub90311-73004
main90311-73004i200908-201404
(J)
sub90311-73005
main90311-73005i201405-201406
(J)
main90311-W0014i201003-201404
(L)
sub90311-W0018
main90311-W0018i201405-201406
(L)
11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
main90126-06029i200502-201406
1501
15193AGASKET, OIL PUMP
main15193-40010i200502-201406
90105W0032
main90105-W0032
90105W0144
main90105-W0144
90105W0145
main90105-W0145
90105W0146
main90105-W0146
9012606018
main90126-06018
9034112031
main90341-12031
9043012025
main90430-12025
9155180616
main91551-80616
9155180880
main91551-80880
9155281040
main91552-81040
9155281070
main91552-81070
9167100845
main91671-00845

21 parts on this diagram · 3 diagrams in section
